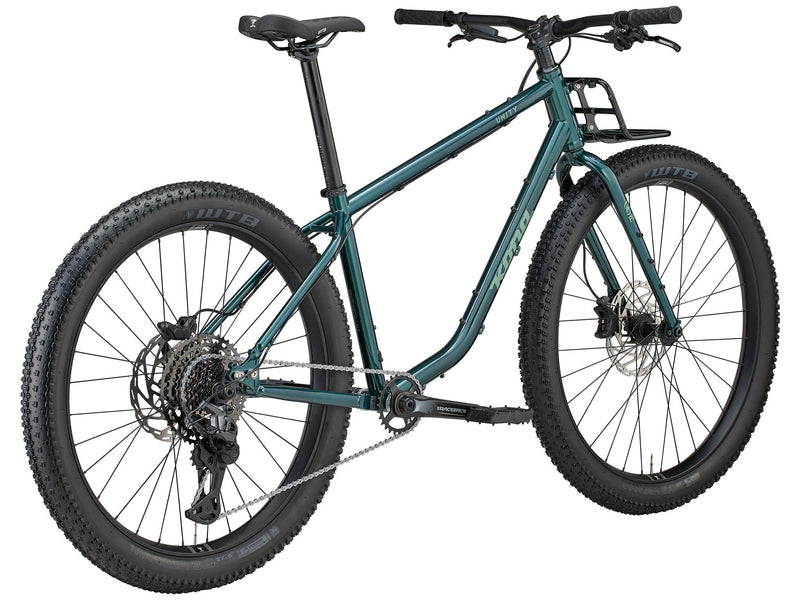

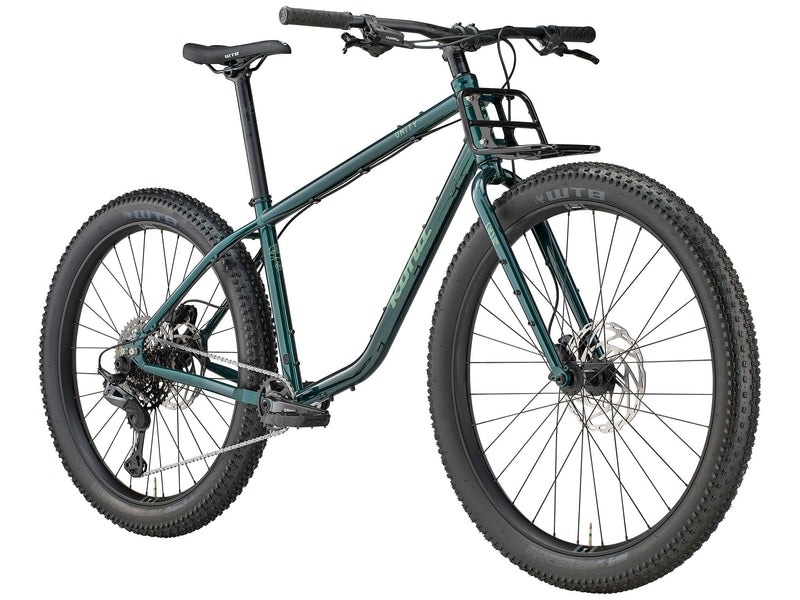

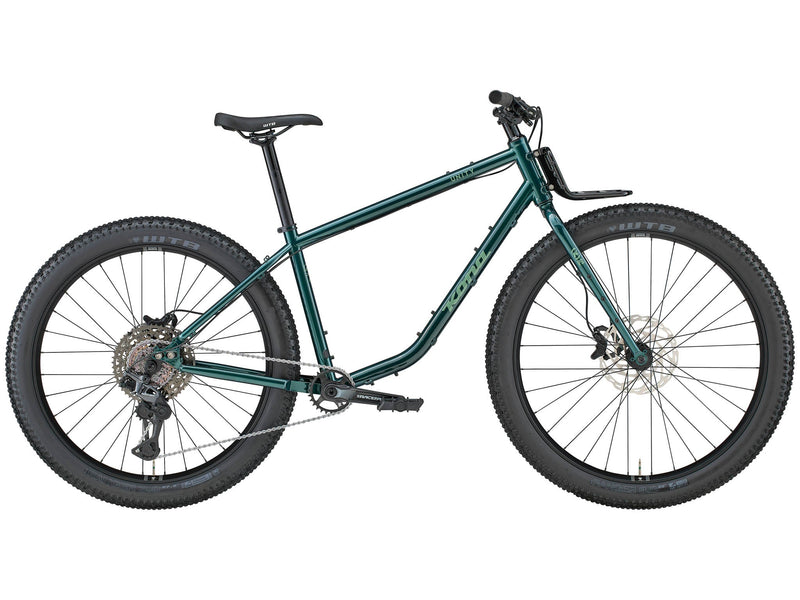

Kona Unity

If you dream of bikepacking, you dream of the Unity. It’s a mountain bike that was built to carry more, wander farther, and keep going when cell service is long, long gone. Mixed wheels and big tires keep it planted and capable, while load-optimized geometry keeps the ride predictable when you’ve packed everything but the kitchen sink.

An oversized front triangle leaves plenty of room for a proper frame bag, and the custom integrated front cargo rack is ready for the rest. Load it up for a week in the mountains. Strip it down and rip your local trails. Build the off-grid battle cruiser of your dreams. Mountain bike, gravel bike, touring machine… The Unity doesn’t really care—it just wants to go.

SPECIFICATIONS

FRAME	Kona Butted Cromoly
SIZES	S, M, L, XL
FORK	Kona Cromoly
CRANKSET	RaceFace Aeffect Cinch 28t / S 165mm / M-L 170mm / XL 175mm
BOTTOM BRACKET	RaceFace BSA 73
PEDALS	Kona JS2
CHAIN	KMC eGlide Turbo
CASSETTE	Shimano XT 11-50t 11spd LG
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	Shimano XT
SHIFTER	Shimano XT
BRAKE CALIPERS	Tektro Gemini M535 4-piston
FRONT BRAKE ROTOR	Tektro 203mm 6B 2.3mm
REAR BRAKE ROTOR	Tektro 203mm 6B 2.3mm
BRAKE LEVERS	Tektro Gemini M535
HEADSET	FSA No.10 ZS44/ZS44
HANDLEBAR	Kona 31.8mm / Back 9º / Up 5º / Rise 15mm / Width 780mm
STEM	Kona 31.8mm / Rise 0º / Length S-M 35mm / M-L 45mm
SEATPOST	Kona Thumb w/Offset 31.6mm / 375mm
SEAT CLAMP	Kona Clamp 34.9mm
GRIPS	Kona Key Grip Lock-on
SADDLE	WTB Volt Medium
FRONT HUB	DT Swiss 370 15x110mm
REAR HUB	DT Swiss 370 12x148mm HG 36t Ratchet
SPOKES	Stainless 2.0mm Black
FRONT RIM	WTB KOM i40 Tough 29"
REAR RIM	WTB KOM i40 Tough 27.5"
FRONT TIRE	WTB Ranger TCS Tough 29x3.0"
REAR TIRE	WTB Ranger TCS Tough 27.5x3.0"
PAINT COLOR	Gloss Metallic Everglade w/ Aspen Decals
EXTRAS	Kona Unity Front Rack 6061 Aluminum

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	370	420	470	530
2	TT Length	591	623	656	691
3	Reach	435	460	485	510
4	Stack	615	620	629	643
5	Standover	725	760	816	849
6	HT Angle	65.8	65.8	65.8	65.8
7	HT Length	160	165	175	190
8	ST Angle	75.8	75.3	74.8	74.3
9	CS Length	440-456	440-456	440-456	440-456
10	BB Drop	70	70	70	70
11	BB Height	311	311	311	311
12	Wheelbase	1176-1191	1203-1219	1232-1248	1263-1279
13	Front Center	745	772	796	831
14	Fork Length	450	450	450	450
15	Fork Offset	59	59	59	59
