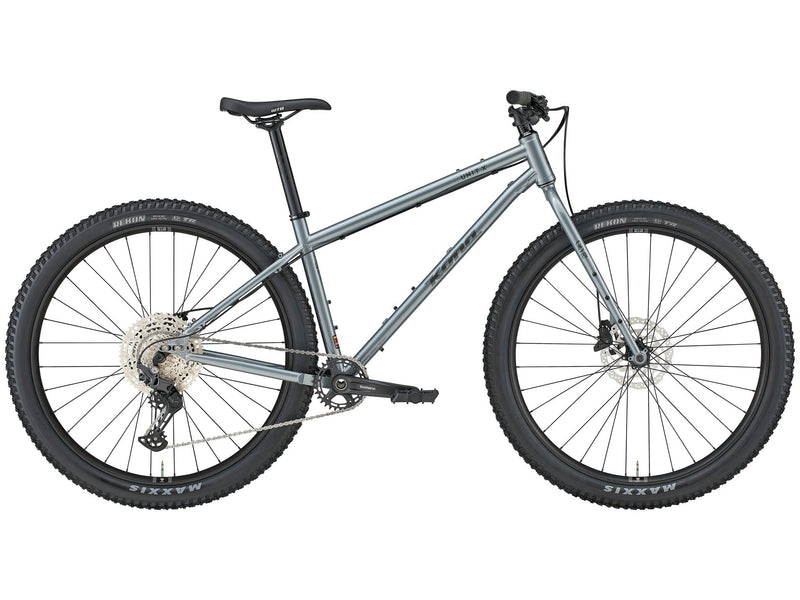

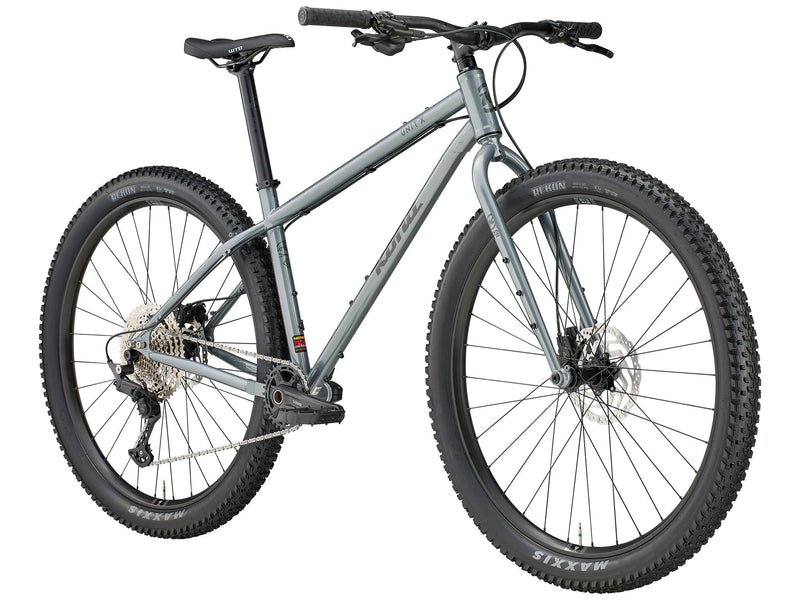

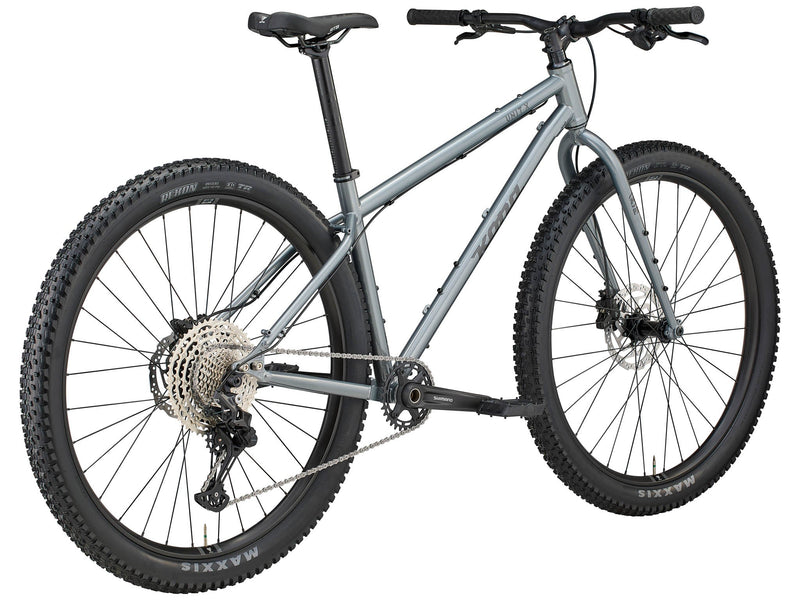

The Unit X takes the beloved Unit platform and dials it up to the max. With a more aggressive geometry and beefy 27.5+ tires, the Unit X is ready to rip through the gnarliest terrain you can find.
The Unit X is a steel mountain bike, bikepacking rig, gravel explorer, and long-distance touring bike with the kind of cult following that would make filmmaker David Lynch proud. Its Kona Cromoly frame, rigid fork, and well-geared 12-speed drivetrain keep it simple, durable, and ready for singletrack, forest roads, loaded adventures, or whatever strange detour pulls you out of the main plot.
Modular dropouts even let you run it as a single speed when things need to get a little more surreal. It’s hard to categorize, oddly practical, and much easier to understand once you’ve experienced it. The Unit X isn’t for everyone, and that’s probably why everyone who gets it won’t shut up about it.
SPECIFICATIONS
| FRAME |
Reynolds 520 Butted Cromoly |
| SIZES |
S, M, L, XL |
| FORK |
Kona Plus Fork 110mm spacing |
| CRANKSET |
Shimano Deore 12spd 32t / S 170mm / M-XL 175mm |
| BOTTOM BRACKET |
Shimano BSA 73mm |
| PEDALS |
Kona JS2 |
| CHAIN |
Shimano Deore 12spd |
| CASSETTE |
Shimano Deore 10-51t 12spd |
| CHAINGUIDE |
n/a |
| FRONT DERAILLEUR |
n/a |
| REAR DERAILLEUR |
Shimano Deore |
| SHIFTER |
Shimano Deore 12spd |
| BRAKE CALIPERS |
Shimano MT410 Hydraulic |
| FRONT BRAKE ROTOR |
Shimano RT10 180mm |
| REAR BRAKE ROTOR |
Shimano RT10 160mm |
| BRAKE LEVERS |
Shimano MT410 Hydraulic |
| HEADSET |
FSA No.10 ZS44/ZS44 |
| HANDLEBAR |
Kona XC/BC Riser / Width 750mm |
| STEM |
Kona XC/BC / Length S-M 50mm / M-L 60mm |
| SEATPOST |
Kona Thumb w/Offset 31.6mm / S-M 350mm / L-XL 375mm |
| SEAT CLAMP |
Kona Clamp 34.9mm |
| GRIPS |
Kona Key Grip Lock-on |
| SADDLE |
WTB Volt Medium |
| FRONT HUB |
Formula 15x110mm |
| REAR HUB |
Formula 12x148mm MS |
| SPOKES |
Stainless 2.0mm Black |
| FRONT RIM |
WTB ST i30 2.0 TCS |
| REAR RIM |
WTB ST i30 2.0 TCS |
| FRONT TIRE |
Maxxis Rekon TR 29x2.6" |
| REAR TIRE |
Maxxis Rekon TR 29x2.6" |
| PAINT COLOR |
Gloss Metallic Dark Faux Raw w/ Tonal Charcoal Decals |
All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.
GEOMETRY
| |
Size |
S |
M |
L |
XL |
| 1 |
ST Length |
370 |
420 |
470 |
530 |
| 2 |
TT Length |
582 |
610 |
637 |
675 |
| 3 |
Reach |
425 |
450 |
475 |
510 |
| 4 |
Stack |
588 |
597 |
606 |
615 |
| 5 |
Standover |
695 |
731 |
768 |
810 |
| 6 |
HT Angle |
68.0 |
68.0 |
68.0 |
68.0 |
| 7 |
HT Length |
110 |
120 |
130 |
140 |
| 8 |
ST Angle |
75.0 |
75.0 |
75.0 |
75.0 |
| 9 |
CS Length |
430 |
430 |
430 |
430 |
| 10 |
BB Drop |
65 |
65 |
65 |
65 |
| 11 |
BB Height |
310 |
310 |
310 |
310 |
| 12 |
Wheelbase |
1115 |
1144 |
1173 |
1211 |
| 13 |
Front Center |
693 |
722 |
750 |
789 |
| 14 |
Fork Length |
470 |
470 |
470 |
470 |
| 15 |
Fork Offset |
50 |
50 |
50 |
50 |
