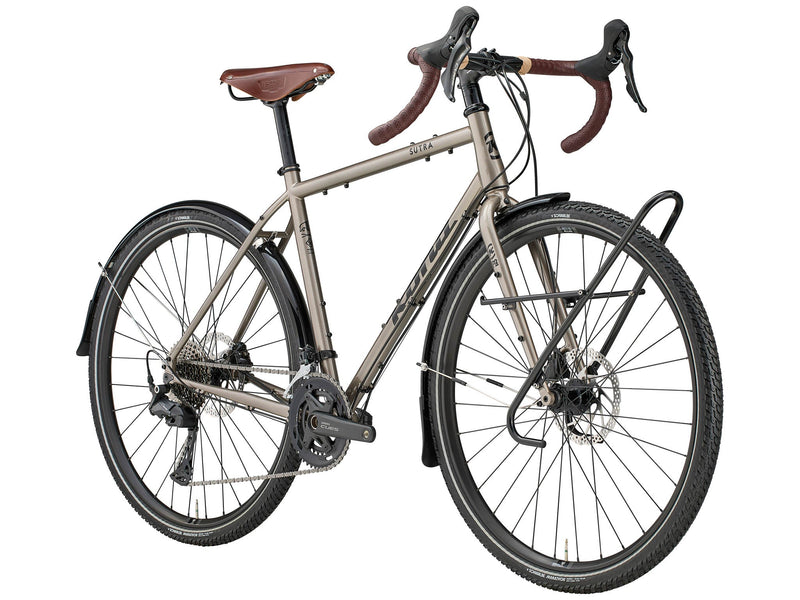

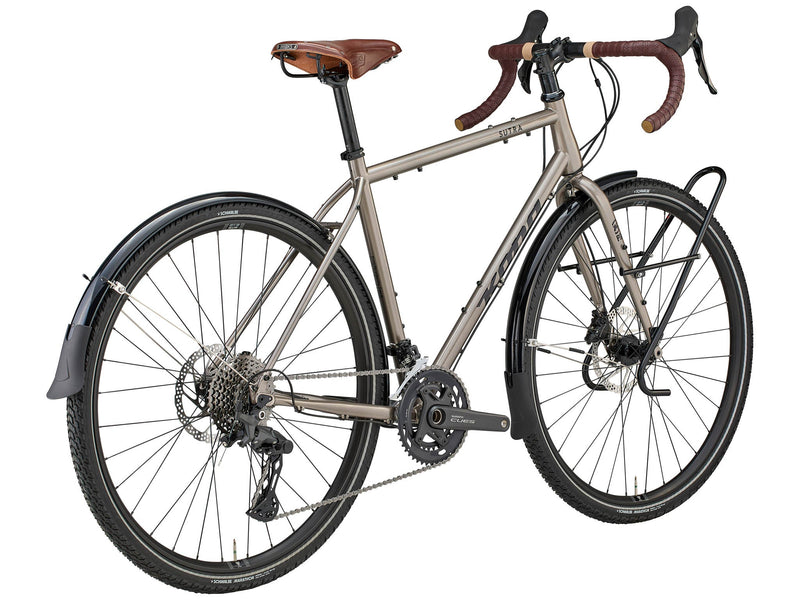

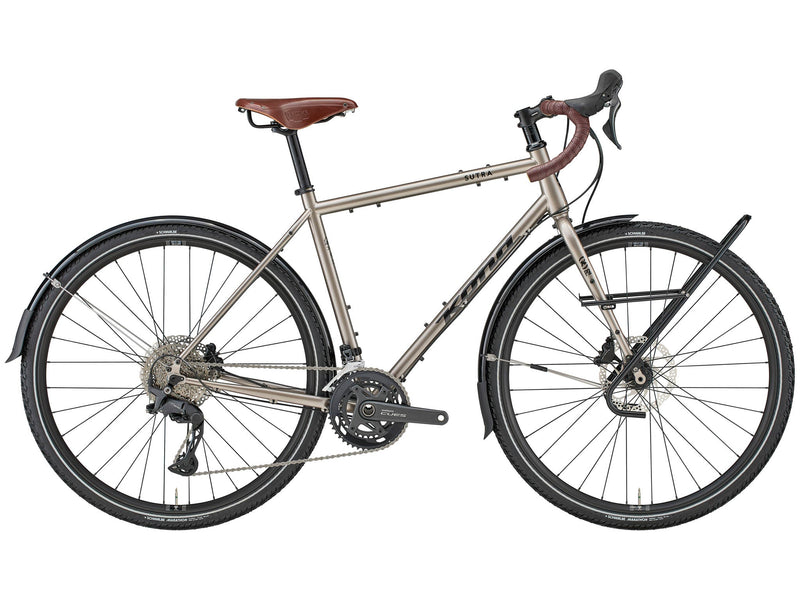

Kona Sutra (Shimano)

Name: Kona Sutra (Shimano)
Brand: Kona
SKU: KN27B-SUT-48
Price: 1999.0 GBP
Availability: InStock

In Transit Stock

External Stock: 0x Units

Kona

48cm

50cm

52cm

54cm

56cm

58cm

The Sutra is a steel touring bike with an analog soul in a digital world. Its Kona Cromoly frame delivers the smooth, steady ride that makes long days and loaded miles feel right, while a Brooks saddle, full fenders, integrated controls, and a Tubus low-rider front rack leave it ready for the road straight out of the box.

It’s a modern take on a classic—equally at home crossing the city, crossing the continent, or stretching a short trip into a full world tour. Load the bags, drop the needle, and take the long way around. No algorithm required.

SPECS & GEOMETRY

SPECIFICATIONS

FRAME	Kona Cromoly Butted
SIZES	48, 50, 52, 54, 56, 58
REAR SHOCK	n/a
FORK	Kona Project Two Cromoly Disc Touring
CRANKSET	Shimano CUES 6030 32/46t / 48-54 165mm / 56-58 170mm
BOTTOM BRACKET	Shimano BSA 68
PEDALS	n/a
CHAIN	Shimano LG500
CASSETTE	Shimano CUES LG400 11-39t 10spd
CHAINGUIDE	n/a
FRONT DERAILLEUR	Shimano CUES 6030
REAR DERAILLEUR	Shimano CUES 6020
SHIFTERS	Shimano CUES 6030
BRAKE CALIPERS	Shimano CUES 6030 Hydraulic
FRONT BRAKE ROTOR	Shimano 180mm 6B
REAR BRAKE ROTOR	Shimano 180mm 6B
BRAKE LEVERS	Shimano CUES 6030 Hydraulic
HEADSET	FSA NO.1/NO.10 EC44/ZS56
HANDLEBAR	Kona Gravel Dropbar 31.8mm / Width 48 42cm / 50-52 44cm / 54 46cm / 56-58 48cm
STEM	Kona 31.8mm / Rise 6º / Length 48-52 60mm / 54-56 70mm / 58 80mm
SEATPOST	Kona w/Offset 27.2mm / 48-52 350mm / 54-58 375mm
SEAT CLAMP	Kona Clamp 31.8mm
GRIPS	Brooks Microfiber Brown
SADDLE	Brooks B17 Leather Brown
FRONT HUB	Formula 12x100mm
REAR HUB	Formula 12x142mm HG
SPOKES	Stainless 2.0mm Black
RIMS	WTB i25
FRONT TIRE	Schwalbe Marathon Mondial 700x40c
REAR TIRE	Schwalbe Marathon Mondial 700x40c
PAINT COLOR	Gloss Metallic Nickel w/ Charcoal Decals
EXTRAS	Fenders w/ Mudflaps / Tubus Tara Big Apple Front Rack

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	480	500	520	540	560	580
2	TT Length	523	538	555	571	588	605
3	Reach	375	380	385	390	395	400
4	Stack	551	570	591	610	632	651
5	Standover	752	770	794	817	835	854
6	HT Angle	70.5	70.5	70.5	70.5	70.5	70.5
7	HT Length	105	125	150	170	195	215
8	ST Angle	75.0	74.5	74.0	73.5	73.0	72.5
9	CS Length	445	445	445	445	445	445
10	BB Drop	74	74	72	72	70	70
11	BB Height	281	281	283	283	285	285
12	Wheelbase	1036	1047	1061	1073	1086	1098
13	Front Center	602	613	626	638	651	662
14	Fork Length	415	415	415	415	415	415
15	Fork Offset	50	50	50	50	50	50
