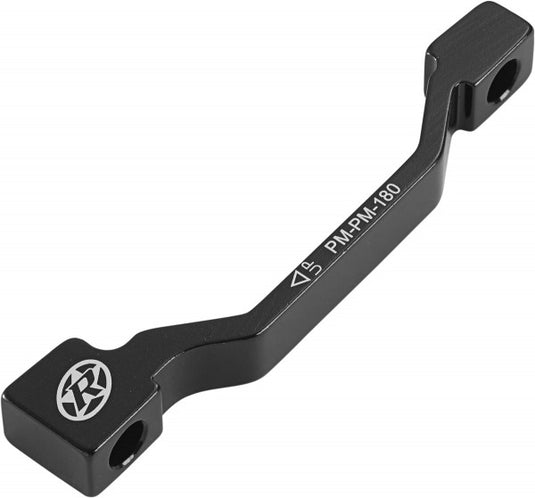

Reverse - Disc Brake Adapter - PM-PM +20mm FR+RE

With the PM-PM +20mm brake adapter, you can increase your disc size by 20 mm.
This means that if your Post Mount (PM) brake mount on the fork or frame is designed for a 160 mm brake disc, you can mount a 180 mm disc with the included adapter.
The same applies to other disc sizes.

PM brake mount 160 mm + PM-PM +20mm adapter = brake disc size 180 mm
PM brake mount 180 mm + PM-PM +20mm adapter = brake disc size 200 mm
PM brake mount 180 mm + PM-PM +20mm adapter + 2 spacers* = brake disc size 203 mm (*With one spacer per mounting side, each 1.5 mm thick)
PM brake mount 200 mm + PM-PM +20mm adapter = brake disc size 220 mm
PM brake mount 203 mm + PM-PM +20mm adapter = brake disc size 223 mm

When installing the PM-PM +20mm adapter, longer mounting screws are required, which are not included and must be purchased separately. Part No. 01990

Material
- Aluminum

Features
- PM-PM +20mm
- For use on front and rear wheels
- Weight: 13g (+/- 5% weight tolerance)
