SKU: KN23B-PR153-27-SM-MO

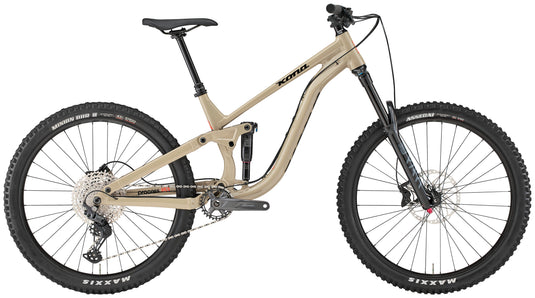

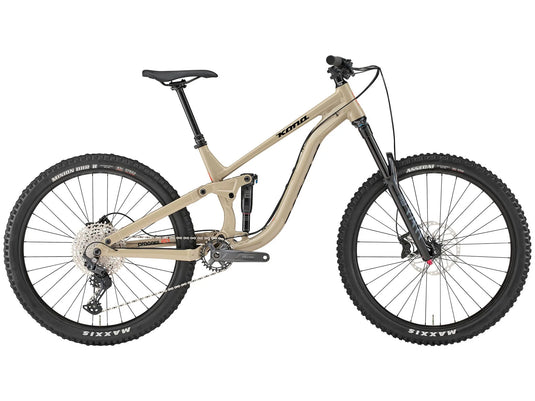

Process G2 - 153 27.5 - Full Suspension

In Transit Stock

Incoming Stock: 15x Units Due 2026-07-23

External Stock: 27x Units

Vendor Kona
Size:

SPEC HIGHLIGHTS

  • RockShox Yari RC 160mm fork
  • RockShox Deluxe Select Plus rear shock
  • Shimano Deore 11spd drivetrain with 11-51t cassette or Microshift Advent X 10spd drivetrain with 11-48t cassette
  • Travel-adjust TranzX dropper post
  • Shimano Deore or SRAM DB8 disc brakes



B3515327BNSHHK01
B3515327BNSHHK03
B3515327BNSHHK05
B3515327BNSHHK06



FRAME MATERIAL Kona 6061 Aluminum Butted 153mm Travel
SIZES S, M, L, XL


Rear Shock RockShox Deluxe Select Plus Trunnion
Fork RockShox Yari RC Motion Control DebonAir 160mm Tapered 110mm Spacing
Crankarms Shimano Deore
Chainrings 30t
B/B Shimano Deore PF92
Pedals n/a
Chain KMC X11
Freewheel Sunrace 11-51t 11spd
Chainguide n/a
F/D n/a
R/D Shimano Deore 11spd
Shifters Shimano Deore 11spd
Brake Calipers Shimano Deore
Front Brake Rotor Shimano RT64 203mm (centerlock)
Rear Brake Rotor Shimano RT64 180mm (centerlock)
Brake Levers Shimano Deore
Headset FSA No.57B
Handlebar Kona XC/BC 35
Stem Kona XC/BC 35
Seatpost TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
Seat Clamp Kona Clamp
Grips Kona Key Grip
Saddle Kona Trail
Front Hub Shimano 110x15mm
Rear Hub Shimano 148x12mm
Spokes Stainless Black 14g
Rims WTB ST i30 TCS 2.0
Front Tire Maxxis Assegai EXO TR DUAL 27.5x2.5" WT
Rear Tire Maxxis Minion DHR II EXO TR DUAL 27.5x2.4" WT
Paint Color Gloss  Mocha w/ Black & Orange Decals
Extras

n/a



GEOMETRY

SIZE S M L XL
1 ST LENGTH 385 410 450 485
2 TT LENGTH 569 599 628 667
3 REACH 430 455 480 515
4 STACK 605 615 625 635
5 STANDOVER 690 700 710 720
6 HT ANGLE 64.5 64.5 64.5 64.5
7 HT LENGTH 123 134 145 156
8 ST ANGLE 77 76.9 76.7 76.6
9 CS LENGTH 430 430 430 430
10 BB DROP 12 12 12 12
11 BB HEIGHT 348 348 348 348
12 WHEELBASE 1184 1213 1243 1283
13 FRONT CENTER 754 784 814 853
14 FORK LENGTH 552 552 552 552
15 FORK OFFSET 37 37 37 37
Bike Geometry
