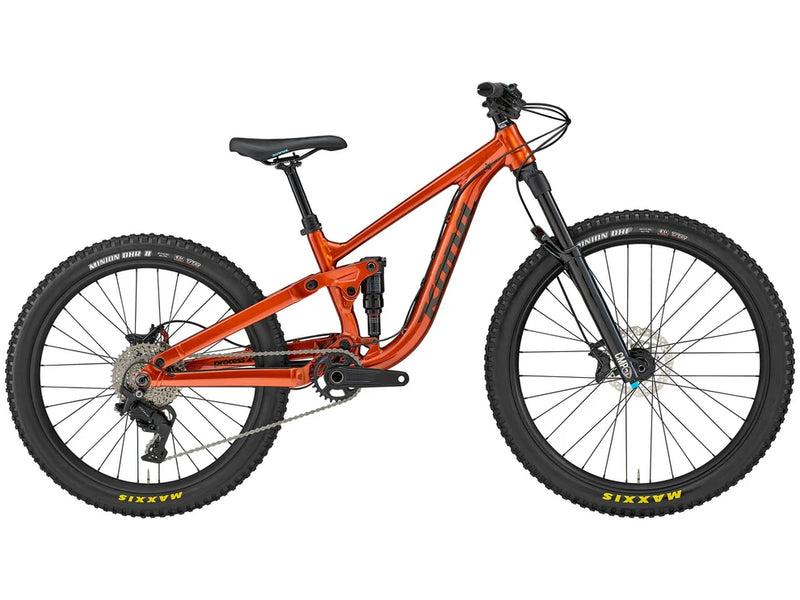

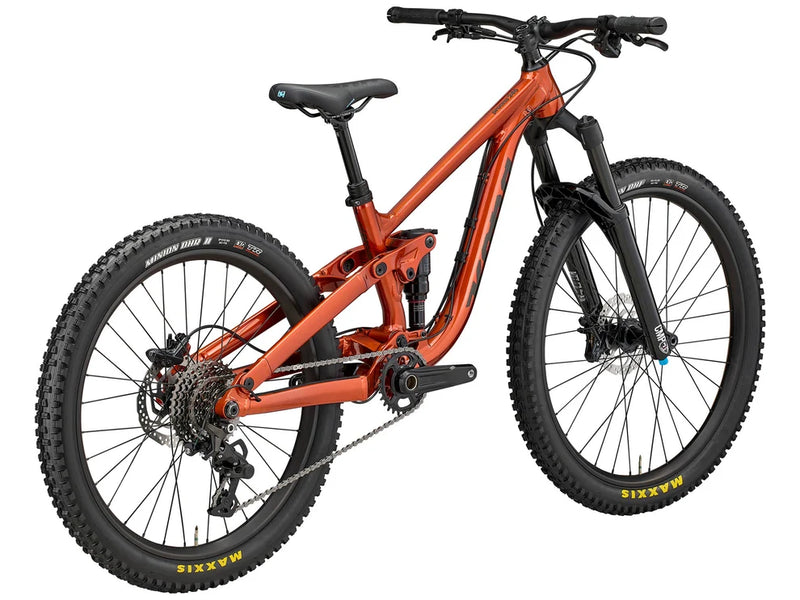

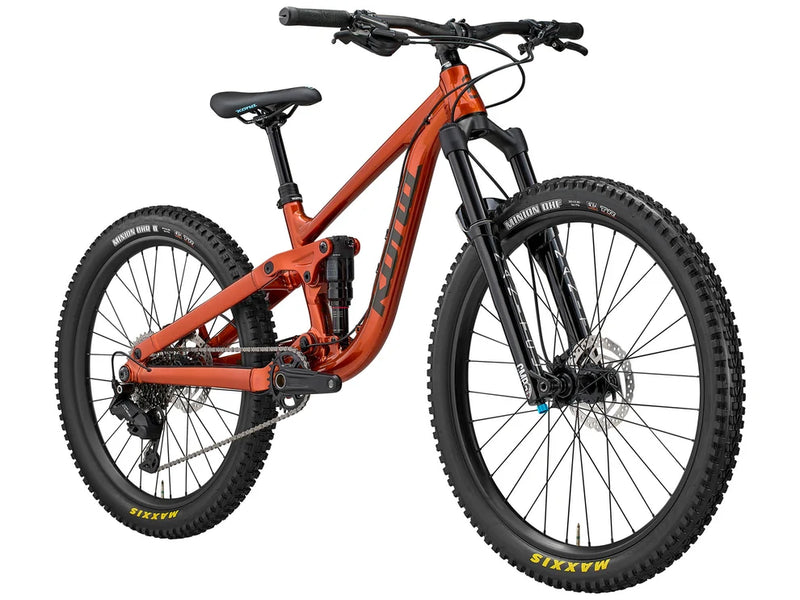

Kona Process 246

The Process 246 is a lightweight, full suspension trail bike designed to help you shred more terrain with less effort. It's the perfect blend of efficiency and capability, ready to tackle everything from flowy singletrack to chunky terrain.

The Process 246 is a youth full suspension mountain bike built for young riders who are ready to take their trail riding somewhere bigger. We made it so the next generation of shredders can ride the way they are only beginning to dream about, with the same capable and confidence inspiring Process DNA as our full size mountain bikes.

Its highly tunable design can run matching 26” wheels or a mixed 26 and 24”, allowing the bike to adapt to rider size, terrain, and riding style. Adjustable reach brake levers give smaller hands precise control, while intuitive suspension, generous standover clearance, and an efficient pedalling platform help riders climb confidently and charge everything from backyard jump lines to the worlds gnarliest bike parks. Adults built the bike. We’ll let the little ones take it from here.

SPECIFICATIONS

FRAME	Kona 6061 Aluminum 120mm Travel
SIZES	n/a
REAR SHOCK	Rockshox Deluxe Select 165x40
FORK	Manitou JUNIT Comp 120mm
CRANKSET	Prowheel DMJ 28t 140mm
BOTTOM BRACKET	Prowheel PF92
PEDALS	Kona JS2
CHAIN	Shimano CUES LG500
CASSETTE	Shimano CUES 4000 11-39t 10spd HG
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	Shimano RDU4010
SHIFTERS	Shimano CUES 6000
BRAKE CALIPERS	Shimano Deore 6120
FRONT BRAKE ROTOR	Shimano RT-26 160mm 6B
REAR BRAKE ROTOR	Shimano RT-26 160mm 6B
BRAKE LEVERS	Shimano Deore 6100
HEADSET	FSA No.57B ZS44/ZS56
HANDLEBAR	Kona 31.8mm / Back 9º / Up 5º / Rise 15mm / Width 680mm
STEM	Kona 31.8mm / Rise 0º / Length 35mm
SEATPOST	TranzX Dropper 31.6mm 100mm
SEAT CLAMP	Kona Clamp 34.9mm
GRIPS	Velo JR
SADDLE	Kona Junior
FRONT HUB	Formula 15x110mm
REAR HUB	Formula 12x148mm HG
SPOKES	Stainless 2.0mm Black
RIMS	Alex MD30
FRONT TIRE	Maxxis DHF 26x2.3"
REAR TIRE	Maxxis DHR 24x2.3"
PAINT COLOR	Gloss Metallic Burnt Orange w/ Espresso Decals

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	ST Length	330
1	TT Length	509
2	Reach	370
3	Stack	537
4	Standover	628
5	HT Angle	65
6	HT Length	90
7	ST Angle	75.5
8	CS Length	422
9	BB Drop	5
10	BB Height	297
11	Wheelbase	1081
12	Front Center	659
13	Fork Length	500
14	Fork Offset	41
