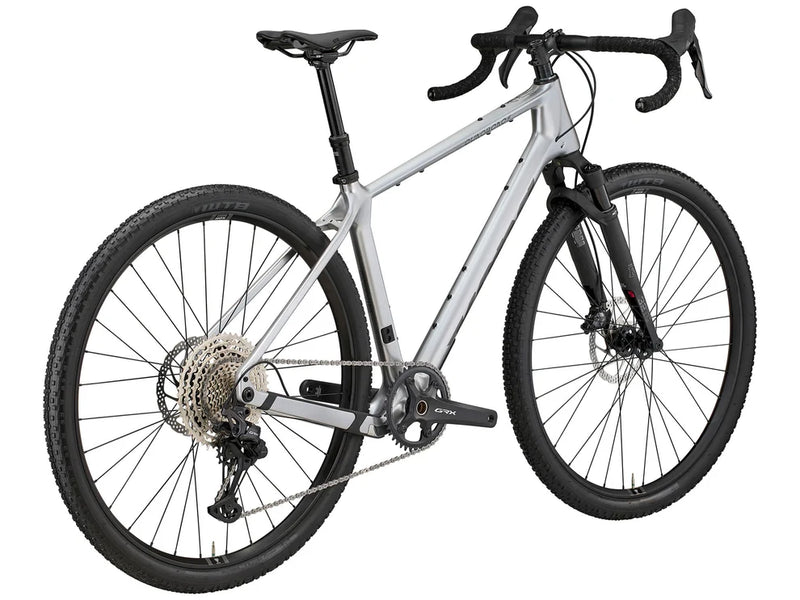

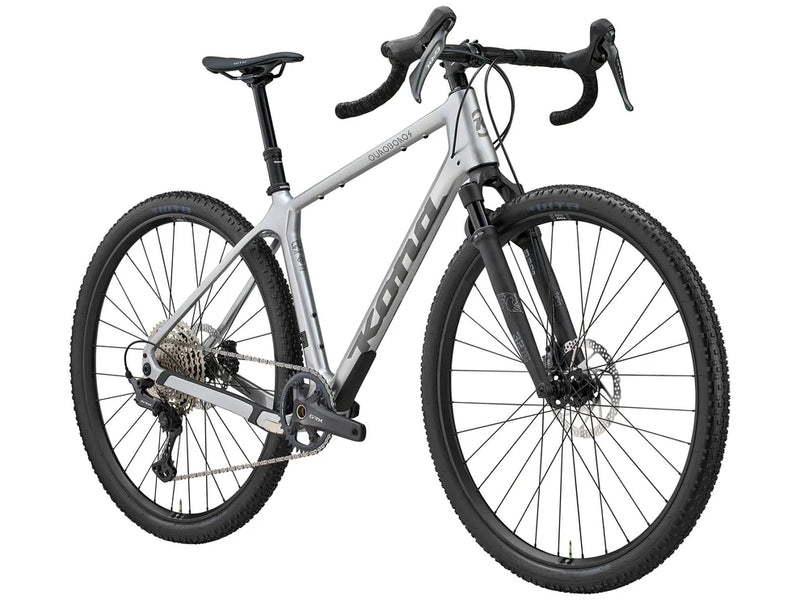

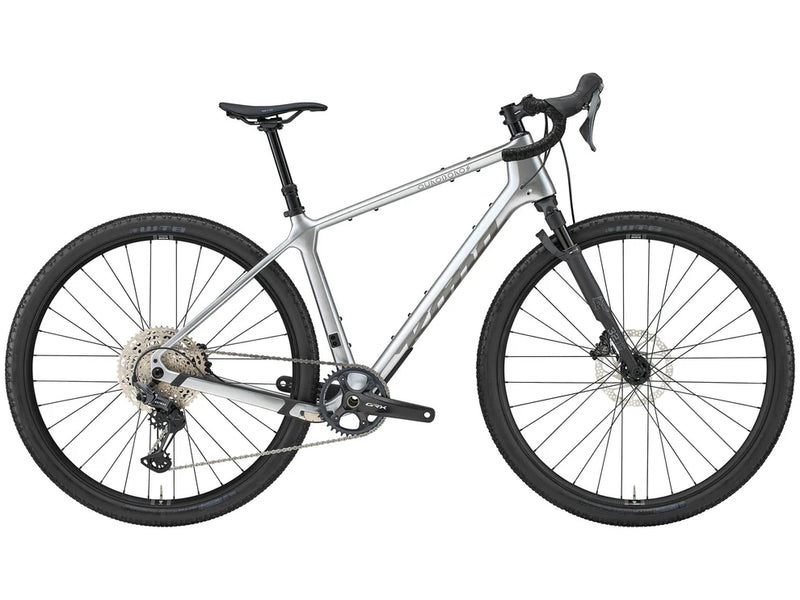

Kona Ouroboros CR

The Ouroboros CR is a high performance carbon gravel bike built for rough terrain, ambitious bikepacking routes, and riders who expect more from a drop-bar bike. Whether you’re a gravel-loving mountain biker or a mountain-bike-loving gravel biker, the Ouroboros Carbon was made to get your attention.

Its lightweight carbon frame is paired with fat tires, large rotors, mountain-bike-standard dropper compatibility, and a wide gear range to deliver real control and capability when the riding gets rowdy. Every part earns its place—and every dollar earns its share of shred. Hop on and let the journey unfold.

SPECIFICATIONS

FRAME	Kona Carbon
SIZES	48, 50, 52, 54, 56, 58
REAR SHOCK	n/a
FORK	Fox AX32 GRIP damper/ 40mm travel / Tapered / 12x100mm
CRANKSET	Shimano GRX 820 40t / Length 48-50 165mm / 52-54 170mm / 56-58 172.5mm
BOTTOM BRACKET	Shimano PF86.5
PEDALS	n/a
CHAIN	Shimano Deore M6100
CASSETTE	Shimano Deore M6200 10-51t 12spd
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	Shimano GRX 822
SHIFTERS	Shimano GRX 820
BRAKE CALIPERS	Shimano GRX 820
FRONT BRAKE ROTOR	Shimano RT56 180mm 6B
REAR BRAKE ROTOR	Shimano RT56 180mm 6B
BRAKE LEVERS	Shimano GRX 820
HEADSET	FSA Orbit No.57E ZS44/ZS56
HANDLEBAR	Kona Gravel Dropbar 31.8mm / Width 48 440mm / 50 460mm / 52-54 480mm / 56 500mm / 58 520mm
STEM	Kona 31.8mm / Rise 6º / Length 48-52 50mm / 54-58 60mm
SEATPOST	TranzX Dropper +RAD 31.6mm 125mm
SEAT CLAMP	Kona Clamp 34.9mm
GRIPS	Kona Cork Tape
SADDLE	WTB Gravelier Steel Fusion Form
FRONT HUB	Formula 12x100mm
REAR HUB	Formula 12x142mm MS
SPOKES	Stainless 2.0mm Black
RIMS	WTB KOM Team i27 TCS CVX 29"
FRONT TIRE	WTB Resolute TCS Light 700x50mm
REAR TIRE	WTB Resolute TCS Light 700x50mm
PAINT COLOR	Gloss Metallic Silver w/ Tonal Silver Decals

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	410	410	455	455	500	535
2	TT Length	532	547	559	578	595	616
3	Reach	372	377	382	386	391	396
4	Stack	566	581	598	616	636	666
5	Standover	725	730	769	777	814	848
6	HT Angle	68.7	68.7	68.7	68.7	68.7	68.7
7	HT Length	116	132	148	172	193	225
8	ST Angle	74.2	73.7	73.2	72.7	72.2	71.7
9	CS Length	445	445	445	445	445	445
10	BB Drop	69	69	69	66	66	66
11	BB Height	296	296	296	299	299	299
12	Wheelbase	1060	1071	1082	1096	1108	1124
13	Front Center	624	635	646	659	671	687
14	Fork Length	435	435	435	435	435	435
15	Fork Offset	51	51	51	51	51	51
