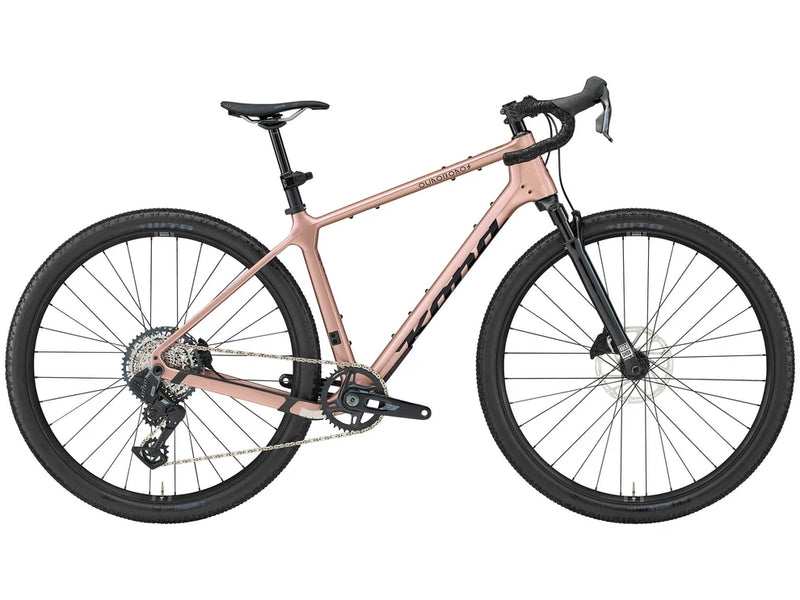

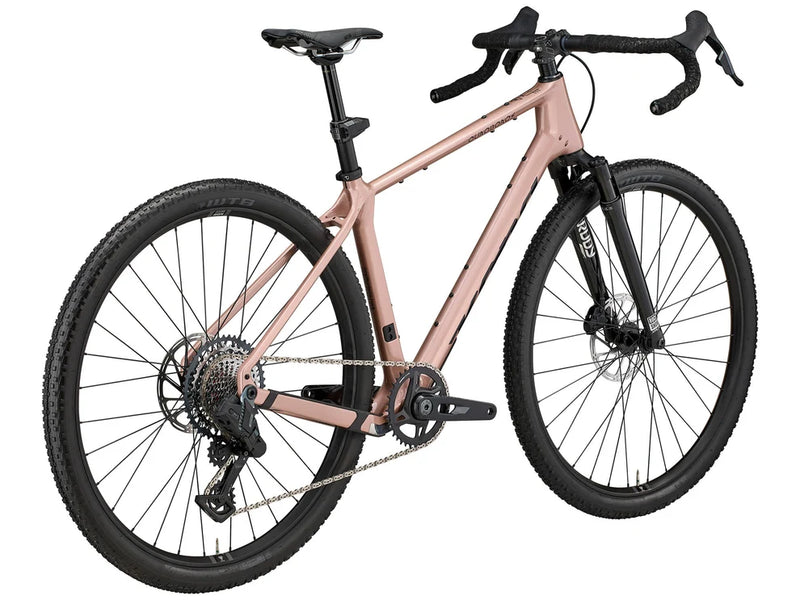

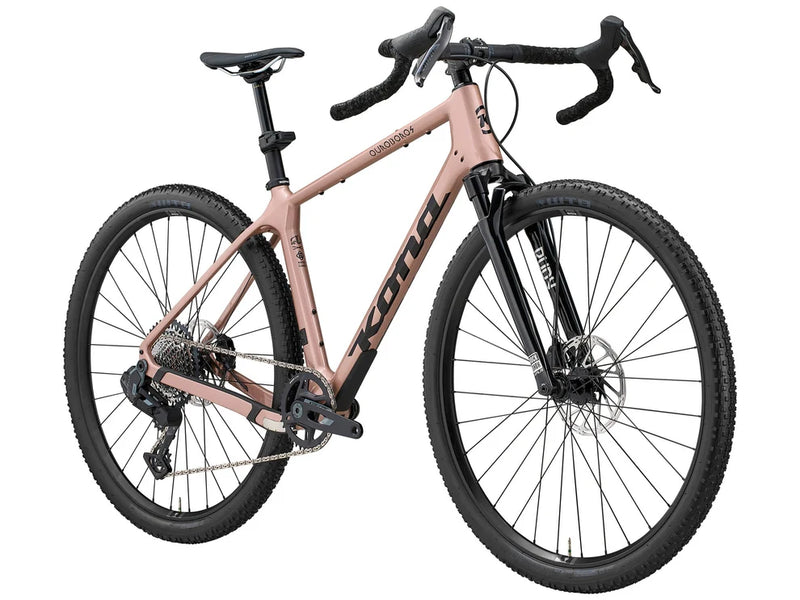

Kona Ouroboros CR/DL

Name: Kona Ouroboros CR/DL
Brand: Kona
SKU: KN27B-OB-CRDL-48
Price: 4999.0 GBP
Availability: InStock

In Transit Stock

External Stock: 0x Units

Kona

48cm

50cm

52cm

54cm

56cm

58cm

The Ouroboros CR/DL is a lightweight gravel bike for riders who want the far-reaching capability of the Ouroboros platform with a more traditional drop-bar look and feel. Its refined build keeps things quick and efficient, while closely spaced gearing makes it easier to find—and hold—your ideal cadence across fast gravel, rolling roads, and long days in the saddle.

It may be the most well-mannered member of the Ouroboros family, but don’t confuse good manners with a shortage of bad ideas. Find your rhythm and see where it takes you.

SPECS & GEOMETRY

SPECIFICATIONS

FRAME	Kona Carbon
SIZES	48, 50, 52, 54, 56, 58
REAR SHOCK	n/a
FORK	RockShox Rudy Ultimate XPLR / Charger Race Day 2 / 40mm travel / tapered / 12x100
CRANKSET	SRAM Rival XPLR 38t / Length 48-52 165mm / 54 170mm / 56-58 172.5mm
BOTTOM BRACKET	SRAM PF86.5 DUB Wide
PEDALS	n/a
CHAIN	SRAM Rival
CASSETTE	SRAM XG 1351 XPLR 10-46t 13sp XDR
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	SRAM Rival XPLR AXS
SHIFTERS	SRAM Rival AXS
BRAKE CALIPERS	SRAM Rival AXS
FRONT BRAKE ROTOR	SRAM Centerline 180mm 6B
REAR BRAKE ROTOR	SRAM Centerline 180mm 6B
BRAKE LEVERS	SRAM Rival XPLR
HEADSET	FSA Orbit No.57E ZS44/ZS56
HANDLEBAR	Ritchey Venturemax Comp / 24º flare / 4.6º back / Width 48-50 460mm / 52-54 480mm / 56 500mm / 58 520mm
STEM	Ritchey Comp Trail / Length 48-52 45mm / 54-58 60mm
SEATPOST	Rockshox Reverb AXS 31.6mm / Length 48-52 100mm / 54-58 125mm
SEAT CLAMP	Kona Clamp 34.9mm
GRIPS	Kona Cork Tape
SADDLE	WTB Gravelier Medium Cromoly SL Fusion Form
FRONT HUB	KT 12x100mm
REAR HUB	KT 12x142mm XDR
SPOKES	Stainless 2.0/1.8mm Black
RIMS	WTB KOM Light i27 TCS 29"
FRONT TIRE	WTB Resolute TCS Light 700x50mm
REAR TIRE	WTB Resolute TCS Light 700x50mm
PAINT COLOR	Gloss Metallic Bronze w/ Black Decals
EXTRAS	AXS Powerpack

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	410	410	455	455	500	535
2	TT Length	532	547	559	578	595	616
3	Reach	372	377	382	386	391	396
4	Stack	566	581	598	616	636	666
5	Standover	725	730	769	777	814	848
6	HT Angle	68.7	68.7	68.7	68.7	68.7	68.7
7	HT Length	116	132	148	172	193	225
8	ST Angle	74.2	73.7	73.2	72.7	72.2	71.7
9	CS Length	445	445	445	445	445	445
10	BB Drop	69	69	69	66	66	66
11	BB Height	296	296	296	299	299	299
12	Wheelbase	1060	1071	1082	1096	1108	1124
13	Front Center	624	635	646	659	671	687
14	Fork Length	435	435	435	435	435	435
15	Fork Offset	51	51	51	51	51	51
