SKU: KN23B-LANA-XS-BU

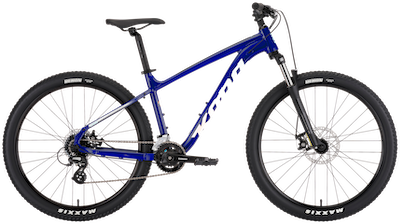

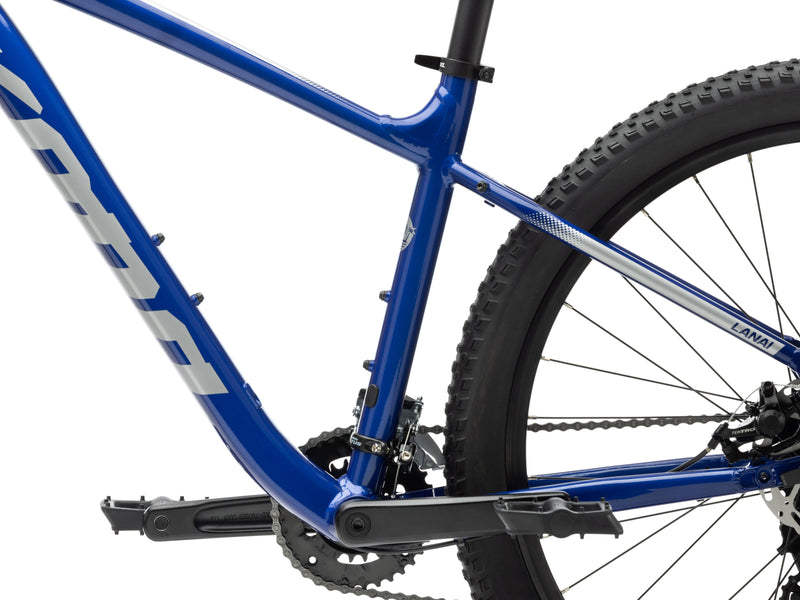

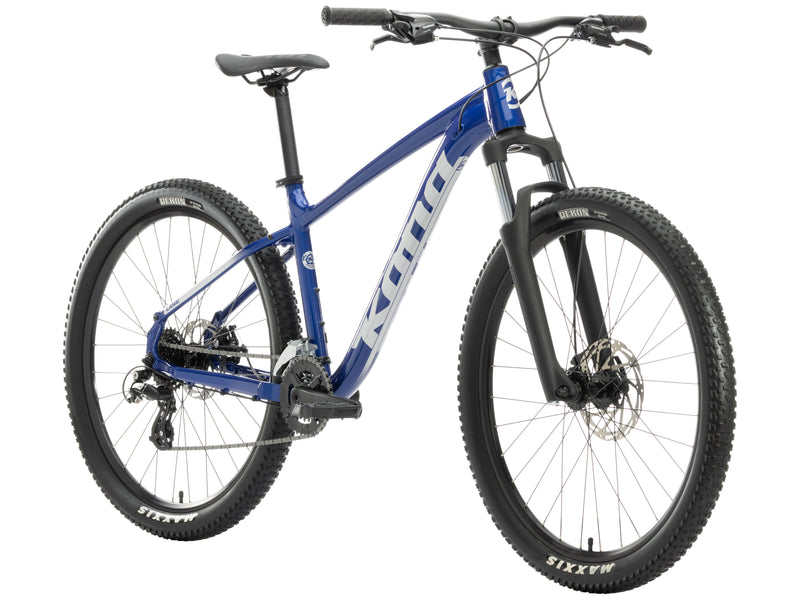

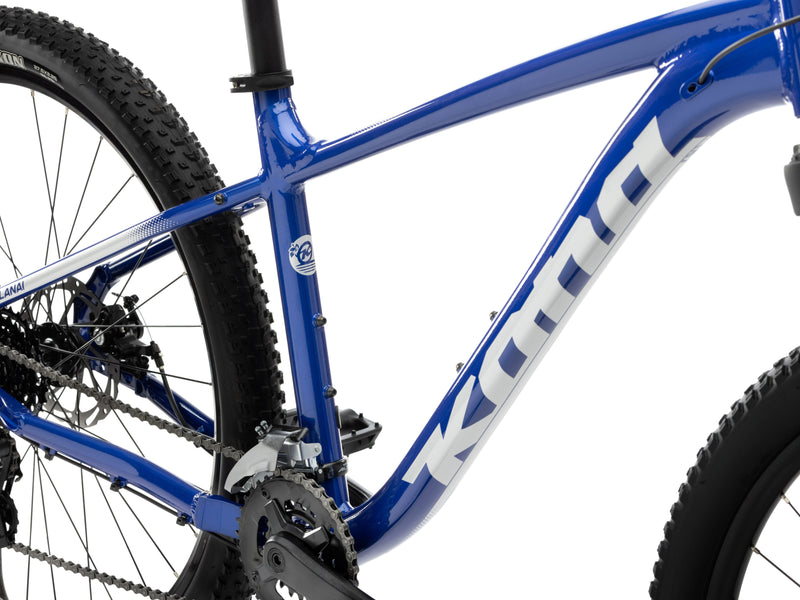

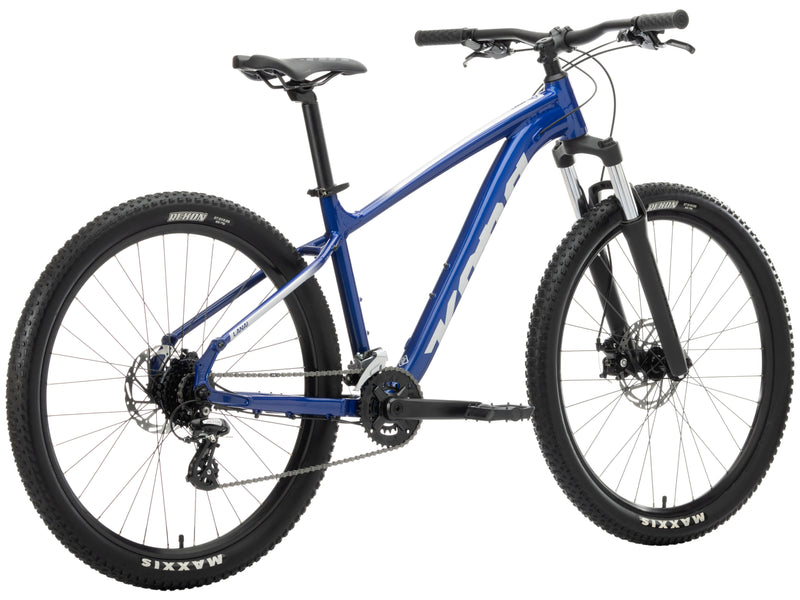

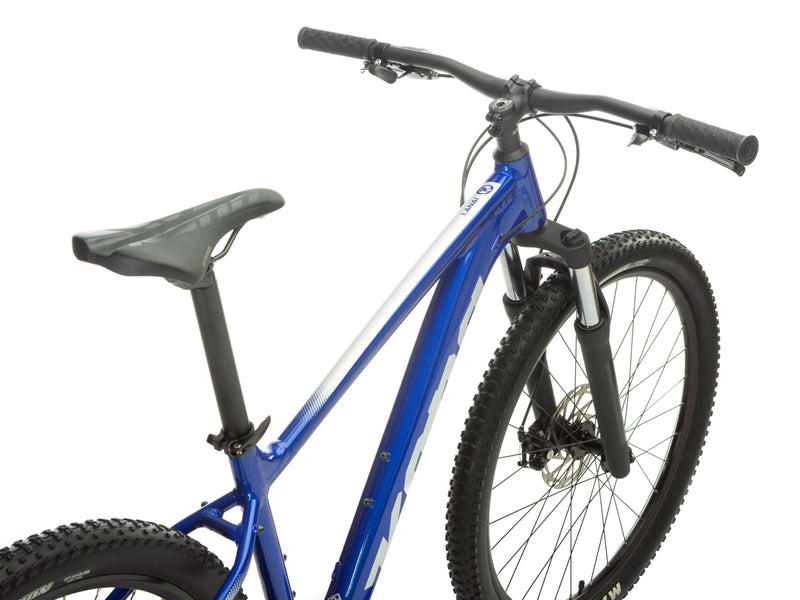

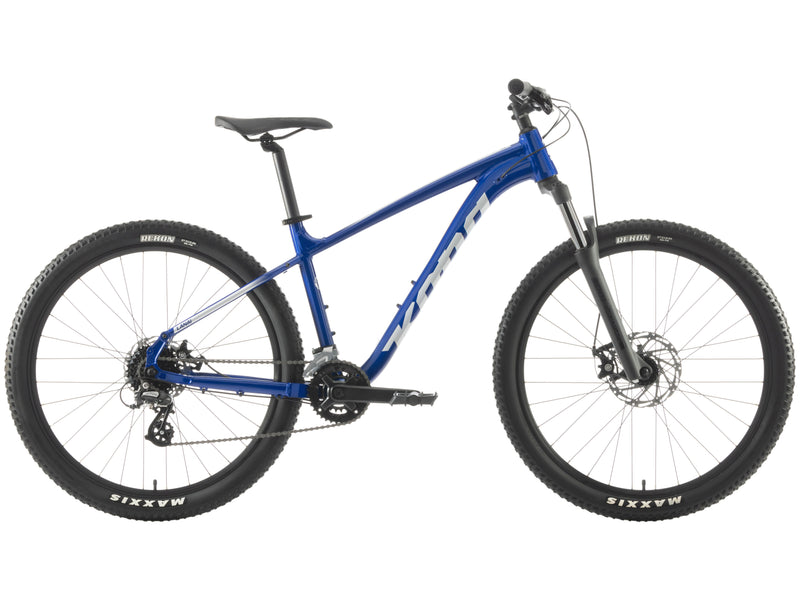

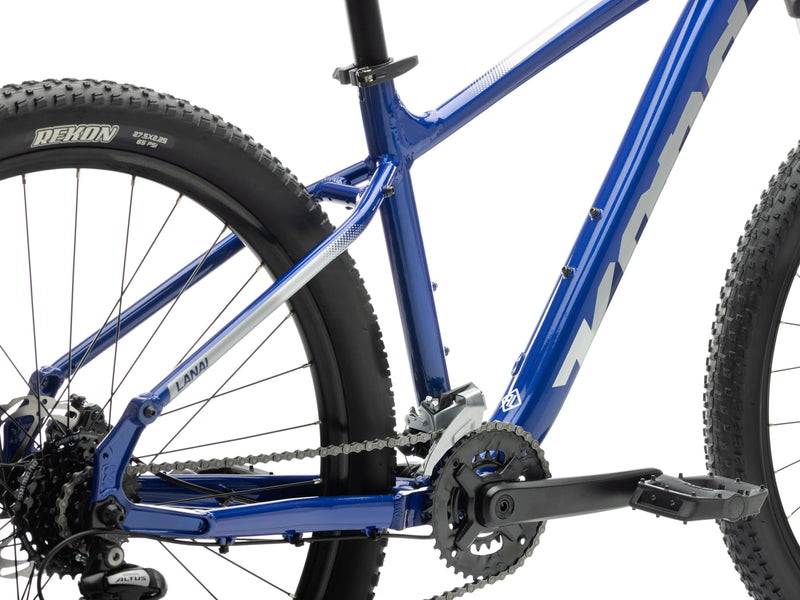

Lana'l - MTB Hardtail - Blue

Future Stock

Vendor Kona
Size:

We all remember our first mountain bike. For many of us it was a bike like the Lana’i. Affordable enough not to feel too risky but stocked with components that give you the freedom to explore off-road. The Lana’i features integrated shifters and brake levers to streamline the cockpit and is now available in three wheel sizes: 26" for size XS, 27.5" for S and M, and 29" for L and XL. With an 8-speed drivetrain, grippy disc brakes and a 100mm travel fork, the Lana’I is the perfect way to taste what real singletrack riding has to offer.


B36LAB00
B36LAB01
B36LAB03
B36LAB05
B36LAB06

SPECS & GEOMETRY

SPECIFICATIONS

FRAME MATERIAL Kona 6061 Aluminum Butted
SIZES XS (26"), S (27.5"), M (27.5"), L (29"), XL (29")
REAR SHOCK n/a
FORK Suntour XCT30 or XCM DS Coil Spring 100mm
CRANKARMS Shimano Altus or Prowheel CW TM-CY10
CHAINRINGS 22/36t
B/B Shimano or Feimin 73mm
PEDALS Kona JS2
CHAIN KMC Z8.3
CASSETTE Shimano HG200 12-32t 8spd
CHAINGUIDE n/a
F/D Shimano Altus
R/D Shimano Altus
SHIFTERS Shimano Altus
BRAKE CALIPERS Tektro M280
FRONT BRAKE ROTOR Tektro 180mm
REAR BRAKE ROTOR Tektro 160mm
BRAKE LEVERS Shimano Altus
HEADSET Feimen HP-H868B
HANDLEBAR Kona Aluminum Riser
STEM Kona Control
SEATPOST Kona Thumb w/Offset 31.6mm
SEAT CLAMP Kona QR
GRIPS Kona Key Grip Slip on
SADDLE Kona XC
FRONT HUB Joytech or Solon 100x9mm
REAR HUB Joytech or Solon 135x10mm
SPOKES Stainless Black 14g
RIMS Alex DP27K or Jalco DD32
FRONT TIRE WTB Trail Boss or Maxxis Rekon 29/27.5/26x2.25"
REAR TIRE WTB Trail Boss or Maxxis Rekon 29/27.5/26x2.25"
PAINT COLOR Satin Midnight or Satin Faux Raw w/ Gloss Tropicana Fade Decals
EXTRAS n/a
All specifications are subject to change without notice


GEOMETRY

SIZE XS S M L XL
1 ST LENGTH 331 370 420 470 530
2 TT LENGTH 549 572 600 628 667
3 REACH 400 415 440 465 500
4 STACK 556 585 599 608 622
5 STANDOVER 675 710 718 724 747
6 HT ANGLE 67.5 68.0 68.0 68.0 68.0
7 HT LENGTH 100 100 115 125 140
8 ST ANGLE 75.0 75.0 75.0 75.0 75.0
9 CS LENGTH 425 425 435 435 435
10 BB DROP 30 50 50 50 50
11 BB HEIGHT 303 304 304 304 304
12 WHEELBASE 1085 1109 1139 1168 1208
13 FRONT CENTER 662 678 709 737 778
14 FORK LENGTH 483 490 490 490 490
15 FORK OFFSET 40 42 42 42 42
Bike Geometry
