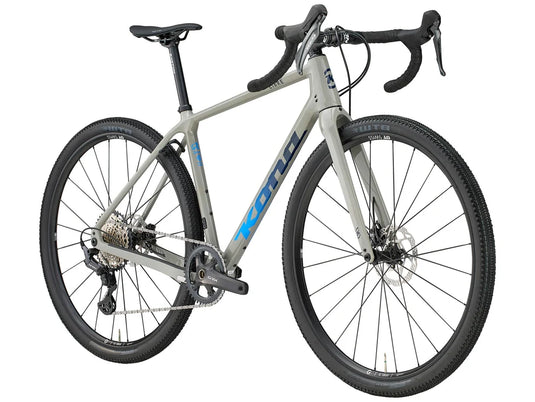

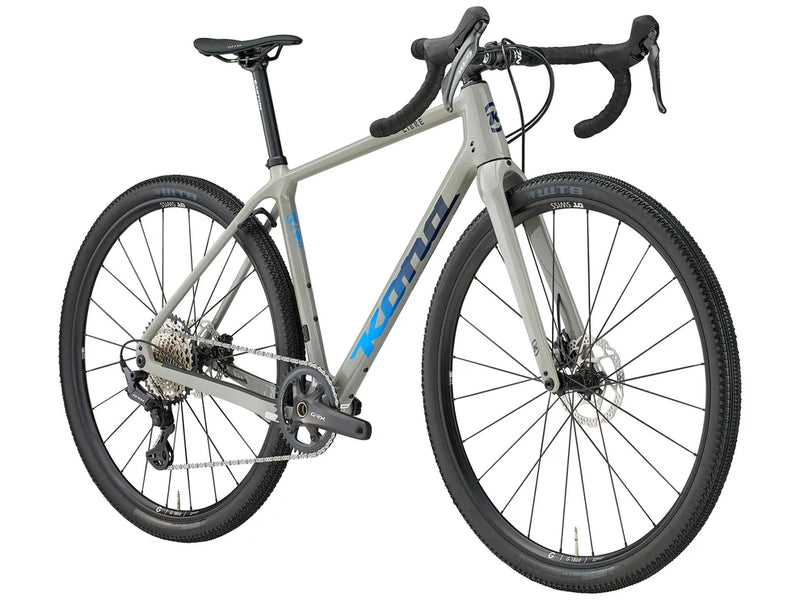

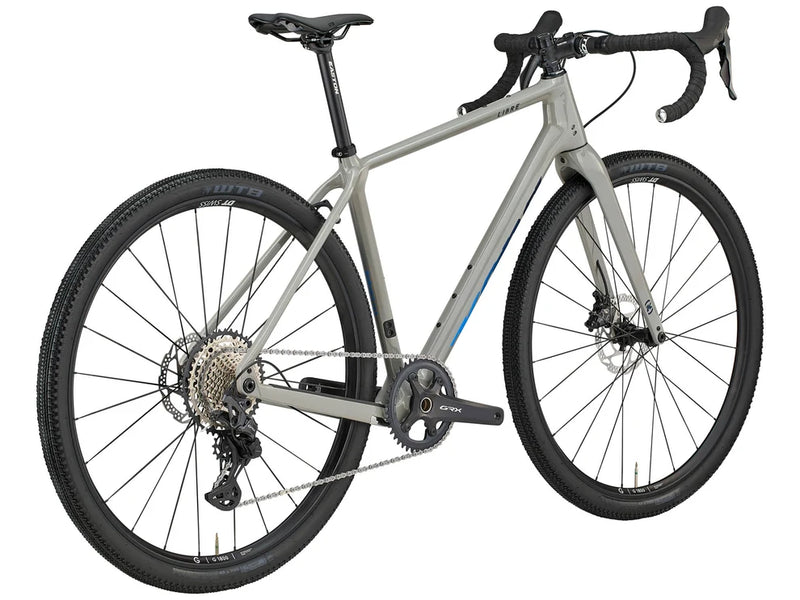

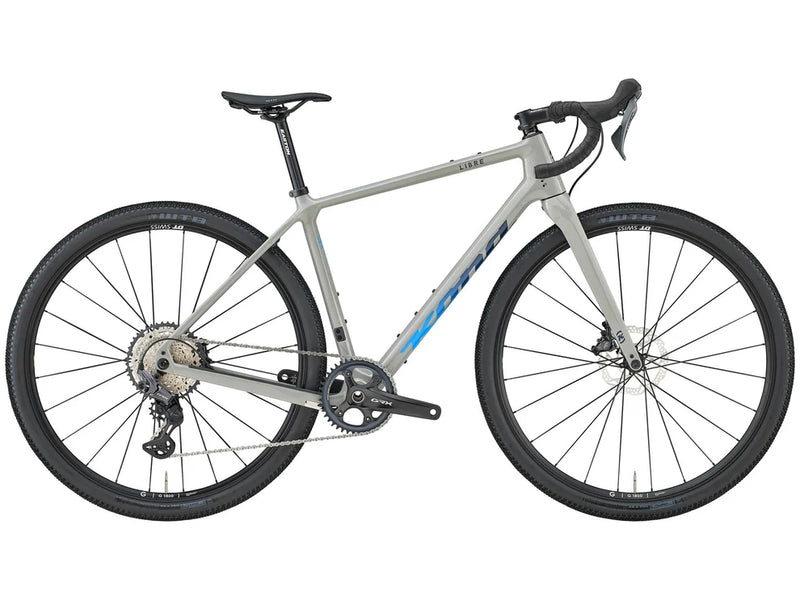

Kona Libre CR

An absolutely stunning gravel bike for those who seek a more traditional look and feel. The Libre CR blends carbon fibre construction with thoughtful geometry to deliver a ride that's equally at home on dirt roads and paved paths.

The Libre CR is a high performance carbon gravel bike built for riders who believe a little speed improves almost everything. Its lightweight carbon frame responds instantly when you put the power down, while PNW-proven geometry keeps the handling precise, planted, and predictable as the pace rises, even when surface falls apart.

Generous tire clearance gives it the freedom to move between everyday gravel rides, fast pavement, weekend exploring, and long days well beyond the usual route. One more climb. One more turn. One long, sweet ride. The bike made me do it.

SPECIFICATIONS

FRAME	Kona Carbon
SIZES	48, 50, 52, 54, 56, 58
REAR SHOCK	n/a
FORK	Kona Libre Carbon Flat Mount Disc
CRANKSET	Shimano GRX 820 42t / Length 48-50 165mm / 52-54 170mm / 56-58 172.5mm
BOTTOM BRACKET	Shimano PF86.5
PEDALS	n/a
CHAIN	Shimano Deore M6100
CASSETTE	Shimano XT 9-45t 12spd
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	Shimano GRX 822
SHIFTERS	Shimano GRX 820
BRAKE CALIPERS	Shimano GRX 820
FRONT BRAKE ROTOR	Shimano RT54 160mm Centerlock
REAR BRAKE ROTOR	Shimano RT54 160mm Centerlock
BRAKE LEVERS	Shimano GRX 820 Lever / GRX 820 Caliper
HEADSET	FSA Orbit No.57E ZS44/ZS56
HANDLEBAR	Easton EA50 / 16º flare / Width 48-50 420mm / 52-54 440mm / 56-58 460mm
STEM	Easton EA50 5mm / Rise 7º / Length 48-50 60mm / 52-54 70mm / 56-58 80mm
SEATPOST	Easton EA50 27.2mm / 350mm
SEAT CLAMP	Kona Clamp 31.8mm
GRIPS	Kona Cork Tape
SADDLE	WTB Gravelier Steel Fusion Form
FRONT HUB	DT Swiss G 1800 12x100mm
REAR HUB	DT Swiss G 1800 12x142mm MS
SPOKES	DT Aero Comp
RIMS	DT Swiss G 1800
FRONT TIRE	WTB Vulpine TCS Light 700x45mm
REAR TIRE	WTB Vulpine TCS Light 700x45mm
PAINT COLOR	Gloss Neutral w/ Electric Blue & Karman Elixr Fade Decals

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	440	460	480	510	540	570
2	TT Length	527	542	556	573	590	610
3	Reach	380	385	390	395	400	405
4	Stack	550	565	580	600	620	650
5	Standover	733	752	770	799	825	855
6	HT Angle	70.5	70.5	70.5	70.5	70.5	70.5
7	HT Length	109	125	140	165	186	218
8	ST Angle	75	74.5	74	73.5	73	72.5
9	CS Length	435	435	435	435	435	435
10	BB Drop	75	75	75	72	72	72
11	BB Height	285	285	285	288	288	288
12	Wheelbase	1030	1040	1050	1064	1076	1092
13	Front Center	606	616	626	639	651	667
14	Fork Length	410	410	410	410	410	410
15	Fork Offset	50	50	50	50	50	50
