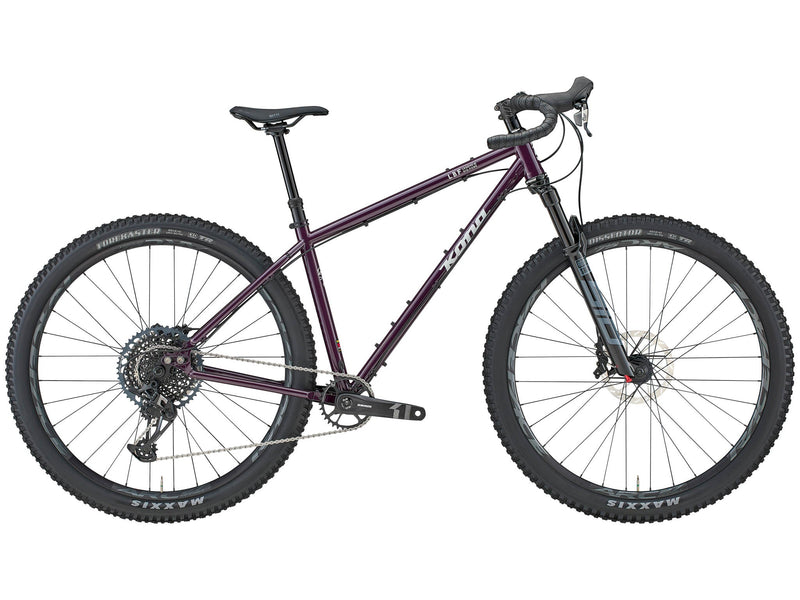

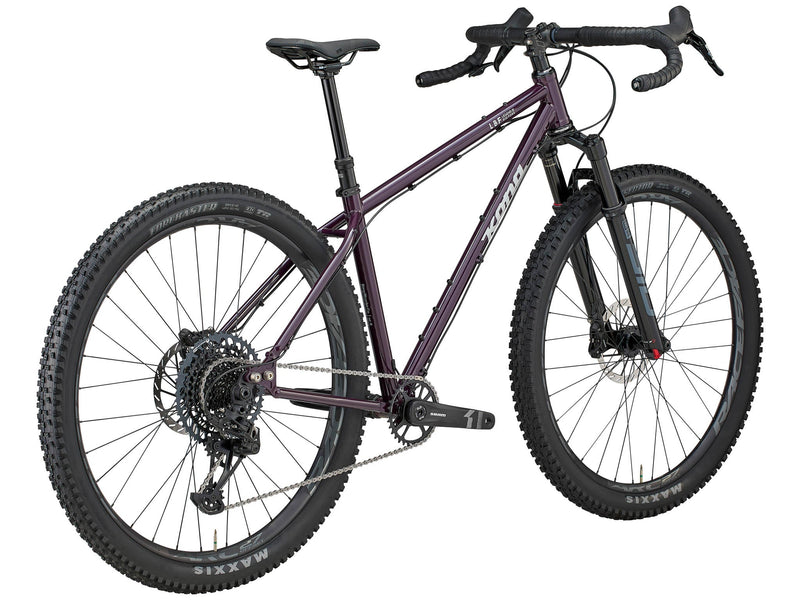

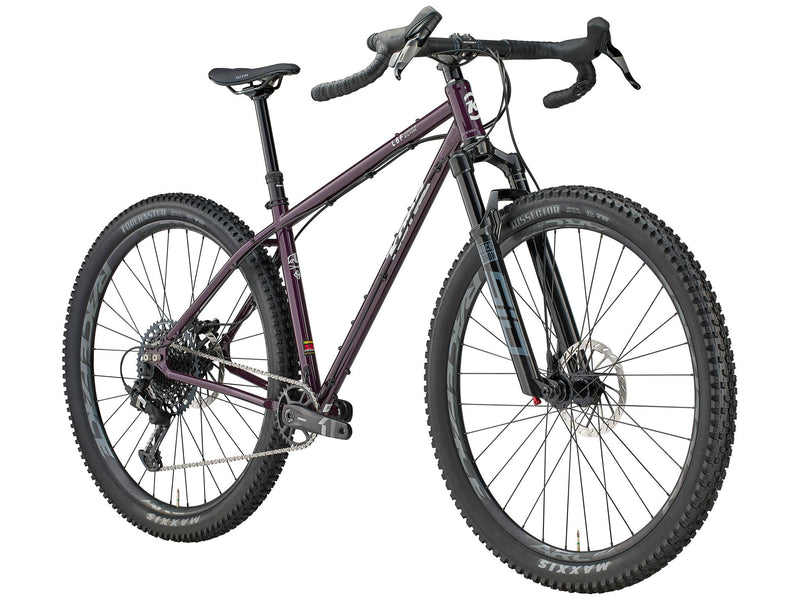

Kona LBF

The LBF is built for riders who want the freedom to go anywhere and the confidence to tackle anything. With its aggressive geometry and premium components, the LBF is ready for the rowdiest trails you can find.

The legend continues…in a new disguise. For those who haven’t heard the whispers, the LBF is a gorgeous Reynolds 520 cromoly hardtail drop-bar bike built for singletrack, chunky backcountry adventures, and every route scratched in by good intentions.

Born from a land of ferns and cedar, this is exactly the kind of category-bending bike only Kona can create. Part gravel bike, part mountain bike, and still not fully explained by science. Reports remain unconfirmed. The tire tracks are very real. Go outside. Unhinge your mind. The bike will follow.

SPECIFICATIONS

FRAME	Reynolds 520 Butted Cromoly
SIZES	S, M, L, XL
REAR SHOCK	n/a
FORK	RockShox SID 100mm 29"
CRANKSET	SRAM X1 32t / S-M 170mm / L-XL 175mm
BOTTOM BRACKET	SRAM DUB BSA 73
PEDALS	n/a
CHAIN	SRAM NX
CASSETTE	SRAM GX 10-52t 12spd
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	SRAM Apex
SHIFTER	SRAM Apex
BRAKE CALIPERS	SRAM G2 4P
FRONT BRAKE ROTOR	SRAM HS2 180mm 6B
REAR BRAKE ROTOR	SRAM HS2 180mm 6B
BRAKE LEVERS	SRAM Apex
HEADSET	FSA No.9M ZS44/EC44
HANDLEBAR	Ritchey Beacon Comp / S 46cm / M 50cm / L-XL 52cm
STEM	Ritchey Comp Trail / S 35mm / M 45mm / L-XL 60mm
SEATPOST	TranzX Dropper +RAD Internal 31.6mm / S 125mm / M 150mm / L-XL 170mm
SEAT CLAMP	Kona Clamp 34.9mm
GRIPS	Kona Cork Tape
SADDLE	WTB Solano Steel Fusion Form
FRONT HUB	Formula 15x110mm
REAR HUB	Formula 12x148mm XD
SPOKES	Stainless 2.0mm Black
RIMS	RaceFace ARC 27 Offset
FRONT TIRE	Maxxis Dissector 29x2.4"
REAR TIRE	Maxxis Forekaster 29x2.4"
PAINT COLOR	Gloss Cherry Lacquer w/ Gum White Decals

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	400	445	490	535
2	TT Length	552	577	607	647
3	Reach	385	405	430	465
4	Stack	623	642	660	679
5	Standover	748	783	816	849
6	HT Angle	67	67	67	67
7	HT Length	90	110	130	150
8	ST Angle	75	75	75	75
9	CS Length	440-456	440-456	440-456	440-456
10	BB Drop	75	75	75	75
11	BB Height	305	305	305	305
12	Wheelbase	1099-1215	1127-1143	1160-1176	1203-1219
13	Front Center	670	697	730	773
14	Fork Length	511	511	511	511
15	Fork Offset	44	44	44	44
