SKU: KN23B-PRXDH-SM

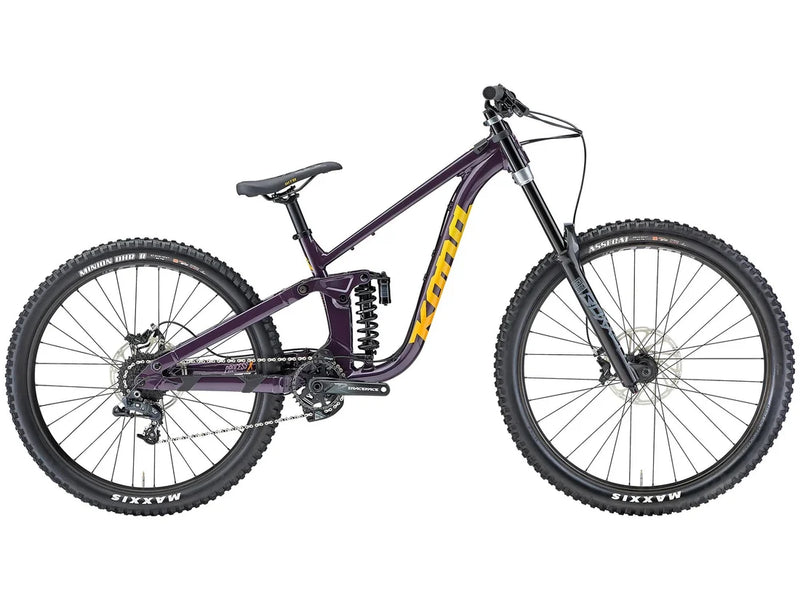

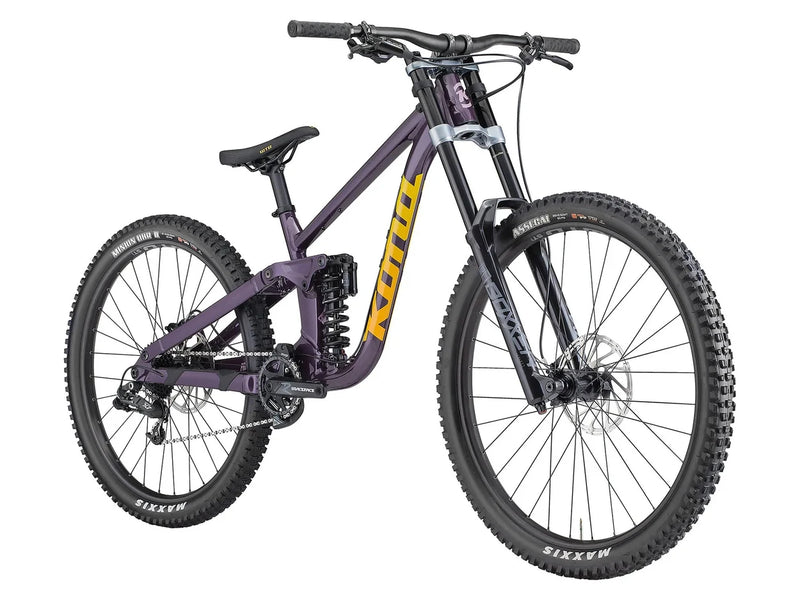

Kona - Process X DH - Full Suspension

Future Stock

Vendor Kona
Size:



Playful riders rejoice – introducing the aluminum Process X DH. For downhill enthusiasts who like to ride outside of the lines, no side hit is safe from tires attached to the Process X DH. Agile enough in the rear end to win Whip Off’s, yet stable enough to absorb some of the biggest hits and inside lines. It offers you everything you need in a bike to become a park rat overnight.


B36PRXD01
B36PRXD03
B36PRXD05
B36PRXD06

SPECS & GEOMETRY

SPECIFICATIONS

FRAME MATERIAL Kona 6061 Aluminum Butted 162mm Travel
SIZES S, M, L, XL
REAR SHOCK RockShox Super Deluxe Coil Trunnion
FORK RockShox Boxxer Select DebonAir 190mm
CRANKARMS Race Face Aeffect R
CHAINRINGS 34t
B/B Race Face PF92
PEDALS n/a
CHAIN KMC X9
CASSETTE SRAM PG920 11-34t 9spd
CHAINGUIDE MRP
F/D n/a
R/D SRAM X7
SHIFTERS SRAM X5
BRAKE CALIPERS SRAM Guide T
FRONT BRAKE ROTOR SRAM Centerline 200mm
REAR BRAKE ROTOR SRAM Centerline 200mm
BRAKE LEVERS SRAM Guide T
HEADSET FSA Orbit 1.5 EP ZS
HANDLEBAR Kona XC/BC 35
STEM Race Face Chester
SEATPOST Kona OB 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB Volt
FRONT HUB Formula 110x20mm
REAR HUB Formula 148x12mm
SPOKES Stainless Black 14g
RIMS WTB ST i30 TCS 2.0
FRONT TIRE Maxxis Assegai DH 29x2.5" WT
REAR TIRE Maxxis Minion DHR II DH 27.5x2.4" WT
PAINT COLOR Gloss Metallic Grape w/ Furnace Fade & Purple Decals
All specifications are subject to change without notice



GEOMETRY

  SIZE S M L XL
1 ST LENGTH 380 380 420 450
2 TT LENGTH 569 594 623 662
3 REACH 440 465 490 525
4 STACK 632 632 637 641
5 STANDOVER 700 700 710 720
6 HT ANGLE 63.5 63.5 63.5 63.5
7 HT LENGTH 110 110 115 120
8 ST ANGLE 77.9 77.9 77.8 77.8
9 CS LENGTH 440 440 440 440
10 BB DROP 20 20 20 20
11 BB HEIGHT 345 345 345 345
12 WHEELBASE 1221 1246 1276 1316
13 FRONT CENTER 783 808 838 878
14 FORK LENGTH 585 585 585 585
15 FORK OFFSET 44 44 44 44
Bike Geometry
