Load image into Gallery viewer, Lana'l - MTB Hardtail - Grey

SKU: KN23B-LANA-SM-GR

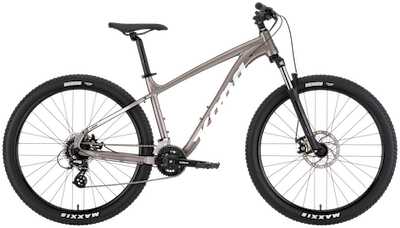

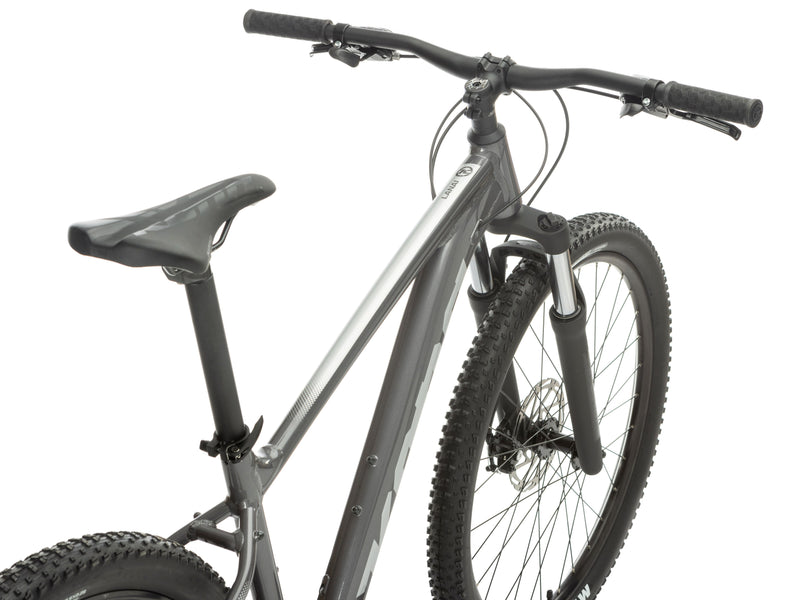

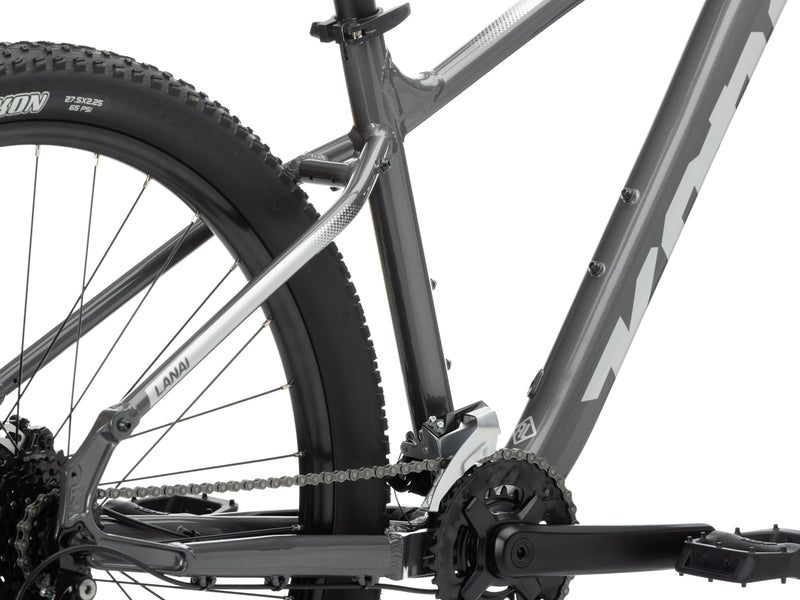

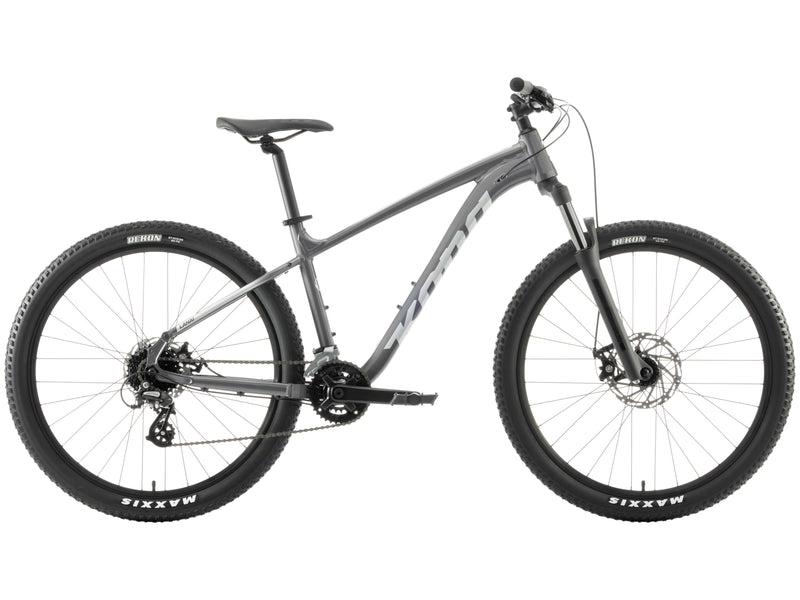

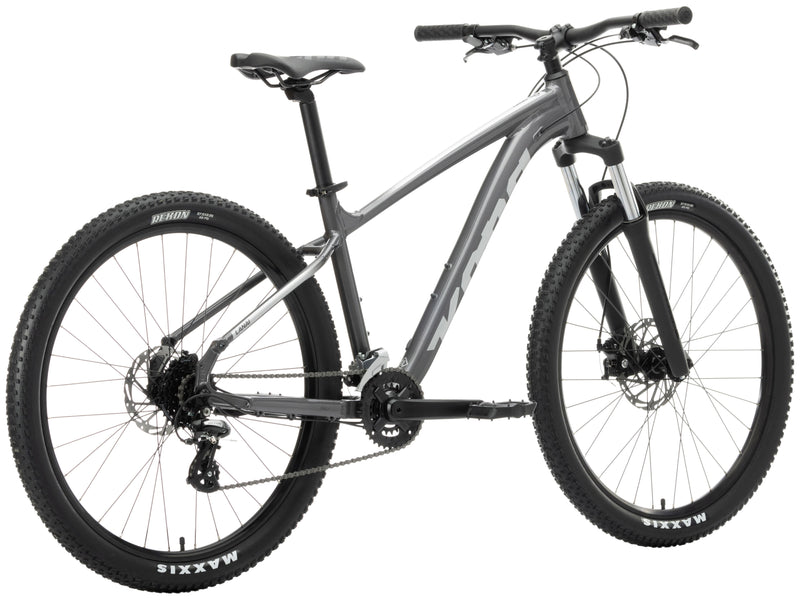

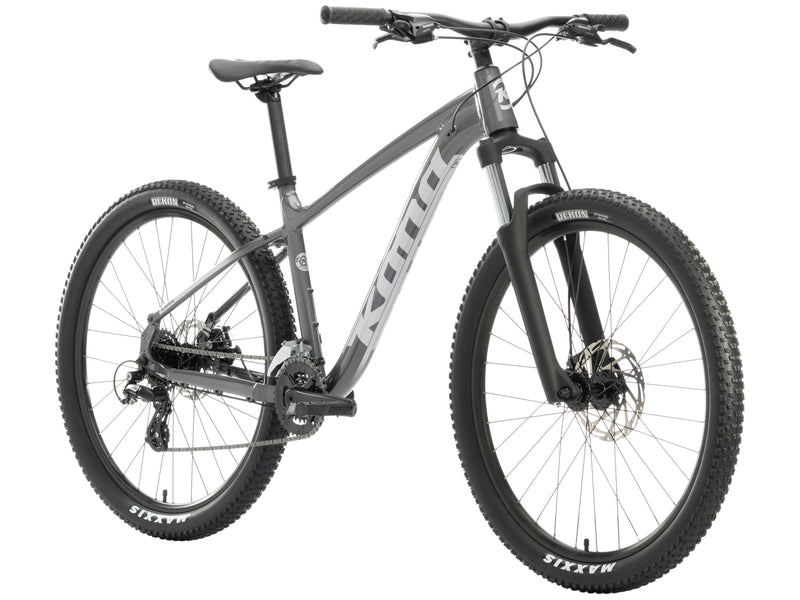

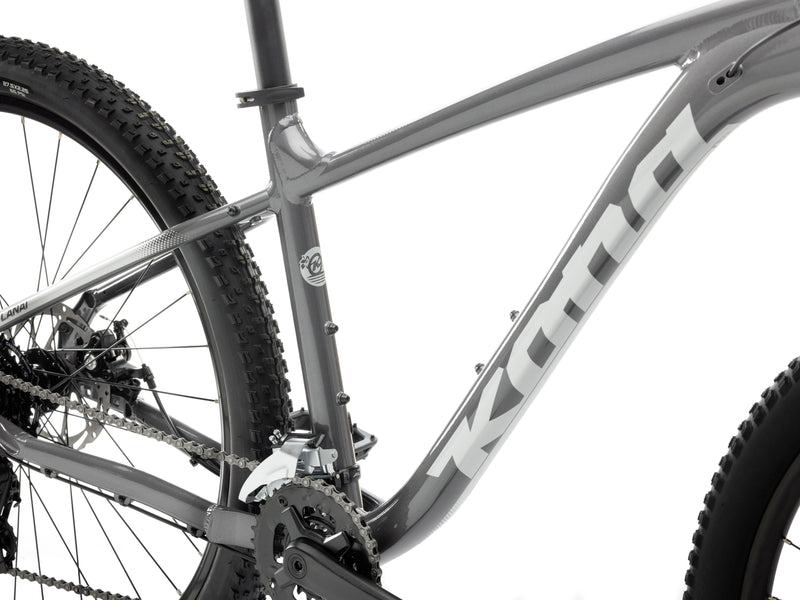

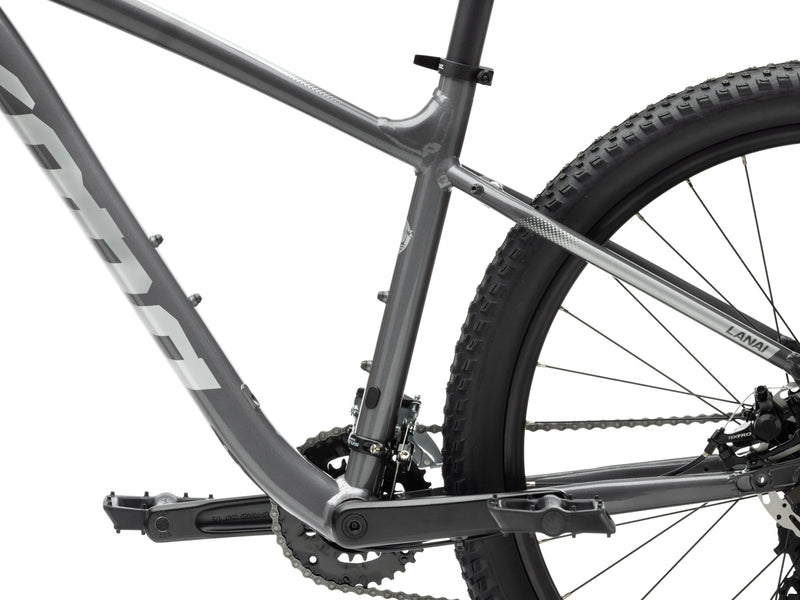

Lana'l - MTB Hardtail - Grey

Name: Lana'l - MTB Hardtail - Grey
Brand: Kona
SKU: KN23B-LANA-SM-GR
Price: 549.0 GBP
Availability: OutOfStock

Future Stock

External Stock: 25x Units 30 Aug 2025

External Stock: 15x Units 30 Nov 2025

External Stock: 10x Units

External Stock: 15x Units

Kona

We all remember our first mountain bike. For many of us it was a bike like the Lana’i. Affordable enough not to feel too risky but stocked with components that give you the freedom to explore off-road. The Lana’i features integrated shifters and brake levers to streamline the cockpit and is now available in three wheel sizes: 26" for size XS, 27.5" for S and M, and 29" for L and XL. With an 8-speed drivetrain, grippy disc brakes and a 100mm travel fork, the Lana’i is the perfect way to taste what real singletrack riding has to offer.

B36LAG00

B36LAG01

B36LAG03

B36LAG05

B36LAG06

SPECS & GEOMETRY

SPECIFICATIONS

FRAME MATERIAL	Kona 6061 Aluminum Butted
SIZES	XS (26"), S (27.5"), M (27.5"), L (29"), XL (29")
REAR SHOCK	n/a
FORK	Suntour XCT30 or XCM DS Coil Spring 100mm
CRANKARMS	Shimano Altus or Prowheel CW TM-CY10
CHAINRINGS	22/36t
B/B	Shimano or Feimin 73mm
PEDALS	Kona JS2
CHAIN	KMC Z8.3
CASSETTE	Shimano HG200 12-32t 8spd
CHAINGUIDE	n/a
F/D	Shimano Altus
R/D	Shimano Altus
SHIFTERS	Shimano Altus
BRAKE CALIPERS	Tektro M280
FRONT BRAKE ROTOR	Tektro 180mm
REAR BRAKE ROTOR	Tektro 160mm
BRAKE LEVERS	Shimano Altus
HEADSET	Feimen HP-H868B
HANDLEBAR	Kona Aluminum Riser
STEM	Kona Control
SEATPOST	Kona Thumb w/Offset 31.6mm
SEAT CLAMP	Kona QR
GRIPS	Kona Key Grip Slip on
SADDLE	Kona XC
FRONT HUB	Joytech or Solon 100x9mm
REAR HUB	Joytech or Solon 135x10mm
SPOKES	Stainless Black 14g
RIMS	Alex DP27K or Jalco DD32
FRONT TIRE	WTB Trail Boss or Maxxis Rekon 29/27.5/26x2.25"
REAR TIRE	WTB Trail Boss or Maxxis Rekon 29/27.5/26x2.25"
PAINT COLOR	Satin Midnight or Satin Faux Raw w/ Gloss Tropicana Fade Decals
EXTRAS	n/a

All specifications are subject to change without notice

GEOMETRY

	SIZE	XS	S	M	L	XL
1	ST LENGTH	331	370	420	470	530
2	TT LENGTH	549	572	600	628	667
3	REACH	400	415	440	465	500
4	STACK	556	585	599	608	622
5	STANDOVER	675	710	718	724	747
6	HT ANGLE	67.5	68.0	68.0	68.0	68.0
7	HT LENGTH	100	100	115	125	140
8	ST ANGLE	75.0	75.0	75.0	75.0	75.0
9	CS LENGTH	425	425	435	435	435
10	BB DROP	30	50	50	50	50
11	BB HEIGHT	303	304	304	304	304
12	WHEELBASE	1085	1109	1139	1168	1208
13	FRONT CENTER	662	678	709	737	778
14	FORK LENGTH	483	490	490	490	490
15	FORK OFFSET	40	42	42	42	42
