SKU: KN23B-DWHD-MD-BR

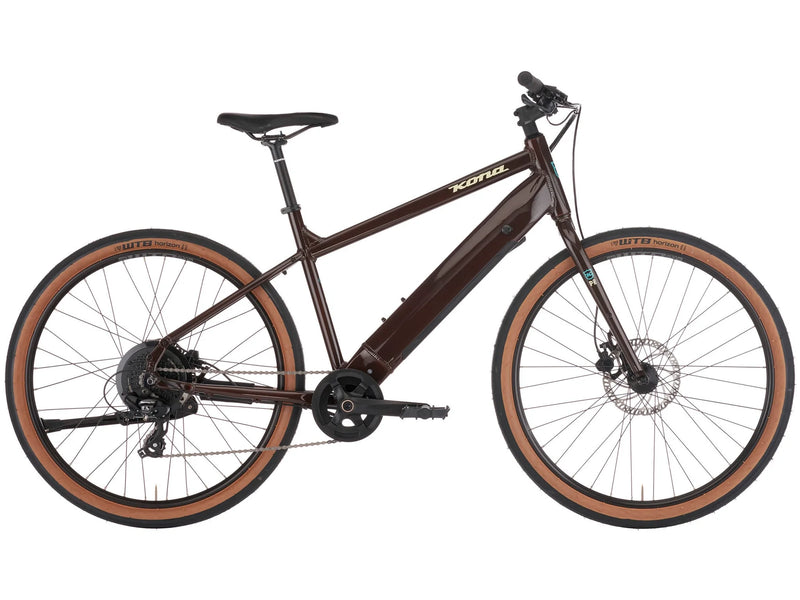

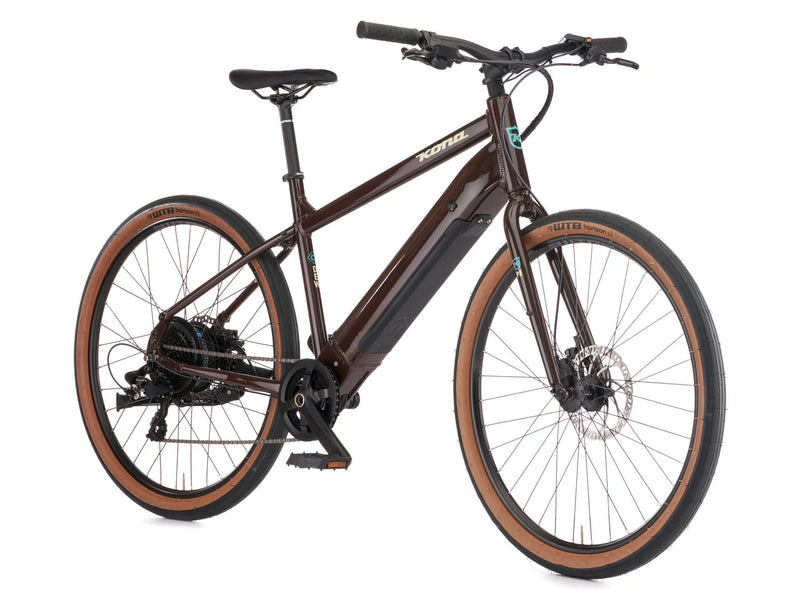

Kona - Dew HD - Electric

Future Stock

Vendor Kona
Size:



Hub drive electric bike seeking ideal rider! Hi! My name is Dew HD! I’m affordable, super fun, stylish, extremely practical, easy-riding, helpful, full of light. You: loathe climbing hills, love (pedal) assistance, enjoy smiling, like going fast, don’t love working that hard if you don’t have to, need a companion to carry your groceries/beer/kids/dog/gear to and from wherever. Let’s fall in love!


B36DWH01
B36DWH03
B36DWH05
B36DWH06

SPECS & GEOMETRY


SPECIFICATIONS

FRAME MATERIAL Kona 6061 Aluminum Butted
SIZES S, M, L, XL
REAR SHOCK n/a
FORK Kona Project Two Aluminum Disc
CRANKARMS Suntour
CHAINRINGS 38t
B/B Suntour
PEDALS Kona JS2
CHAIN KMC Z8.3
CASSETTE Shimano Altus 11-32t 8spd
CHAINGUIDE n/a
F/D n/a
R/D Shimano TX
SHIFTERS Shimano Altus
BRAKE CALIPERS Tektro HDM275 Hydraulic
FRONT BRAKE ROTOR Tektro TR180 180mm
REAR BRAKE ROTOR Tektro TR180 180mm
BRAKE LEVERS Tektro HDM275 Hydraulic
HEADSET Feimin FP-H863
HANDLEBAR Kona Aluminum Riser
STEM Kona Control
SEATPOST Kona Commuter 27.2mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip Slip on
SADDLE Kona Commuter
FRONT HUB Shimano 100x9mm
REAR HUB SR Suntour HD 20MPH
SPOKES Stainless Black 14g/13g
RIMS WTB SX19
FRONT TIRE WTB Horizon Comp 650x47c
REAR TIRE WTB Horizon Comp 650x47c
DRIVEUNIT SR Suntour HD 20MPH
BATTERY Phylion 418Wh
DISPLAY SR Suntour OLED Display
CHARGER Phylion 2A
BATTERYLOCK SR Suntour
PAINT COLOR Gloss Thunder w/ Sandal & Eris Decals
EXTRAS Kickstand
All specifications are subject to change without notice



GEOMETRY

  SIZE S M L XL
1 ST LENGTH 420 470 520 580
2 TT LENGTH 550 597 636 686
3 REACH 398 423 439 465
4 STACK 568 606 643 681
5 STANDOVER 685 720 756 797
6 HT ANGLE 70.0 70.0 70.0 70.0
7 HT LENGTH 145 185 225 265
8 ST ANGLE 75.0 74.0 73.0 72.0
9 CS LENGTH 450 450 450 450
10 BB DROP 60 60 60 60
11 BB HEIGHT 282 282 282 282
12 WHEELBASE 1082 1121 1150 1190
13 FRONT CENTER 639 677 707 747
14 FORK LENGTH 409 409 409 409
15 FORK OFFSET 50 50 50 50
Bike Geometry
