SKU: KN23B-COHD-SM-YE

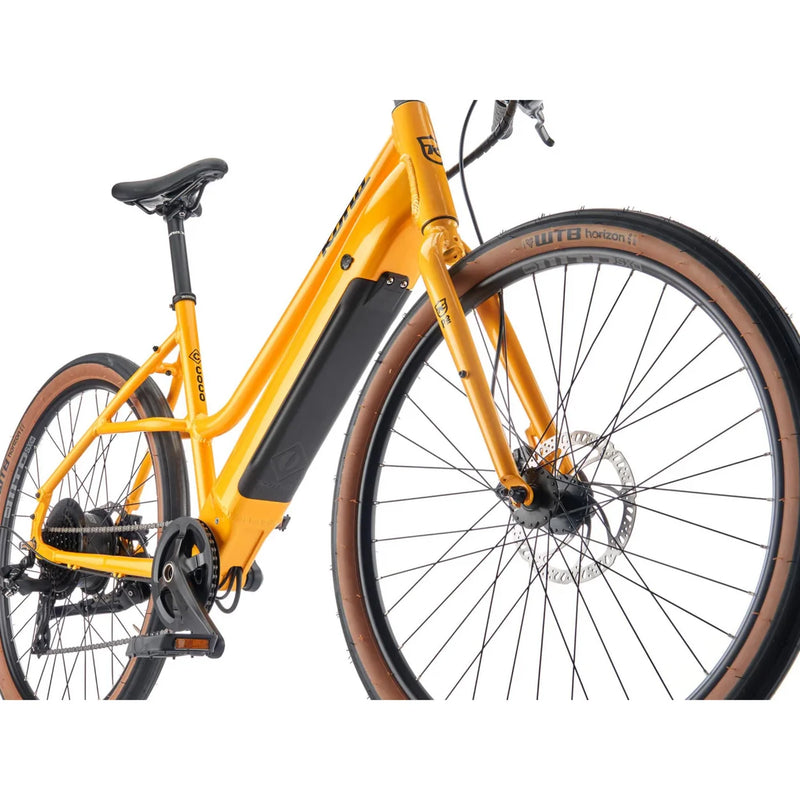

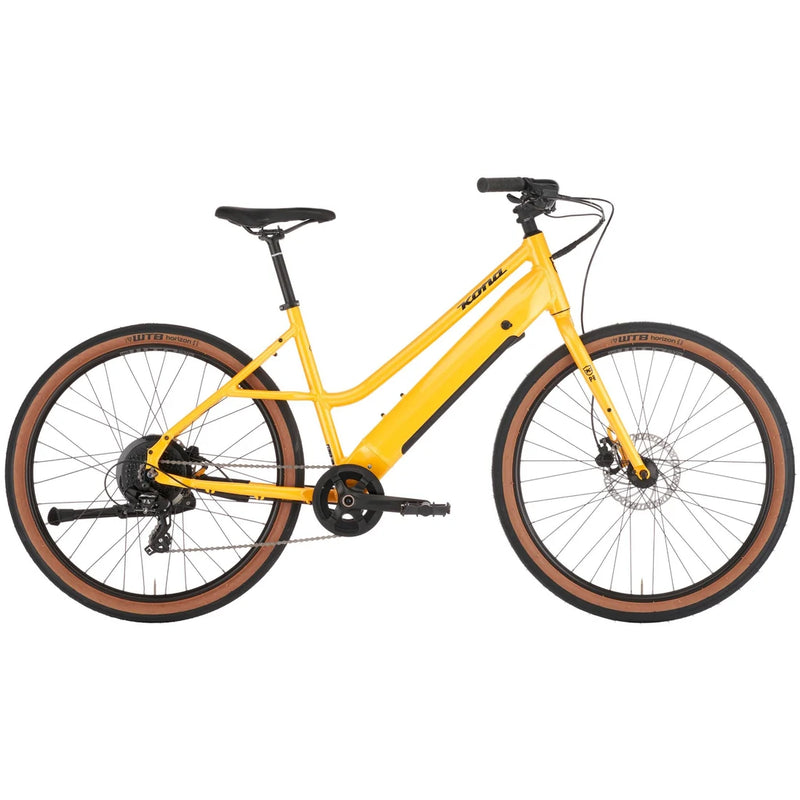

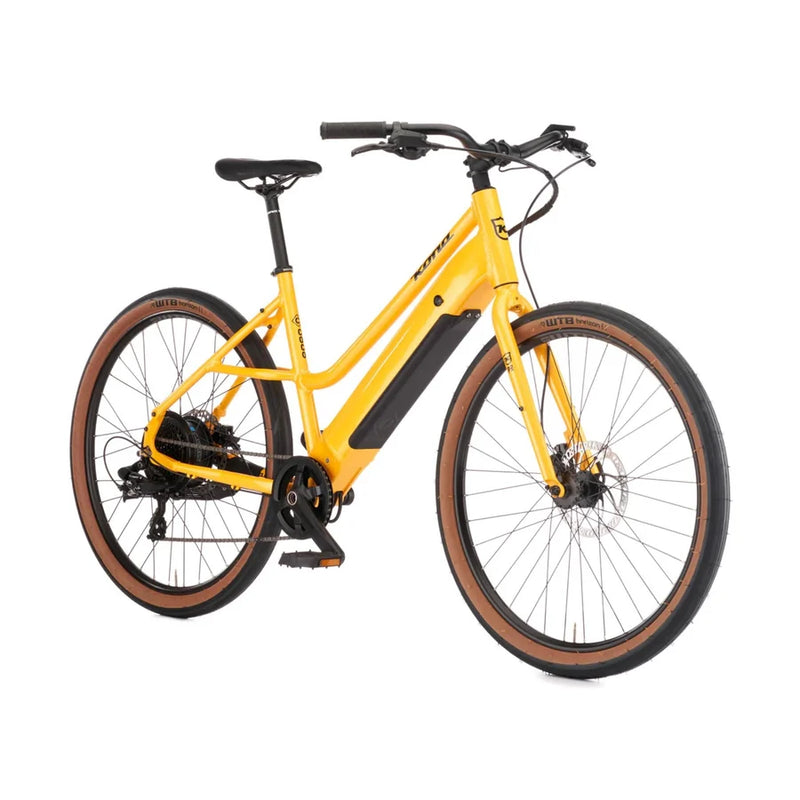

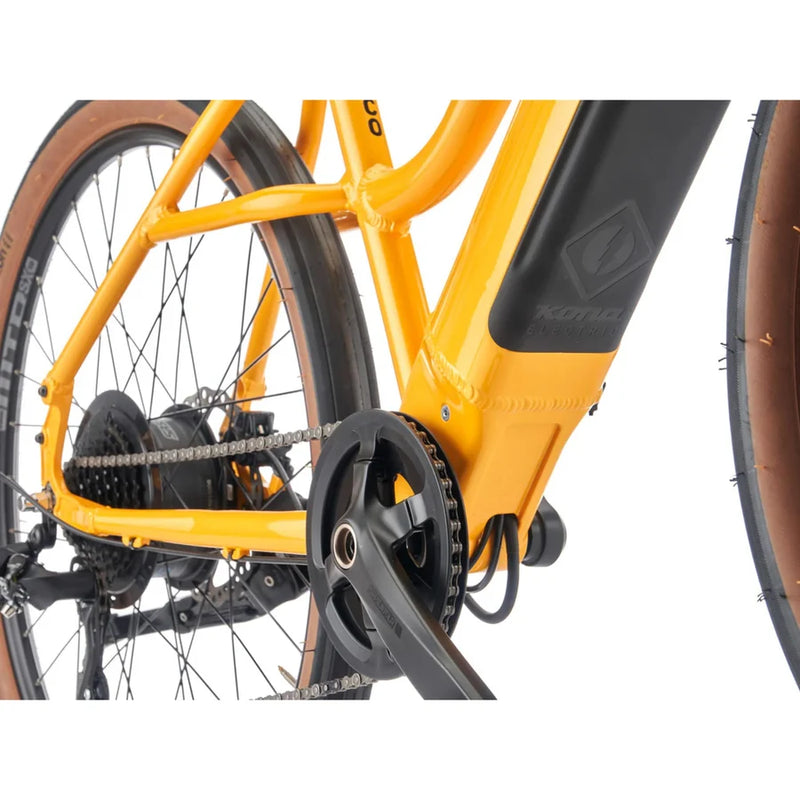

Coco HD - Electric

Future Stock

Vendor Kona
Size:
There’s style and then there’s smart style. The Coco HD is the best of both worlds. With an efficient hub drive motor that makes every ride enjoyable, it’s an easy solution to a daily commute. Its step-through design and head-turning bold colour is the perfect accessory for someone looking to enjoy their rides without the hassle of a tall top tube. Take it to brunch, to the park, or take it to work. The Coco HD is a game-changer for the stylish rider.


B36COH01
B36COH03
B36COH05

SPECS & GEOMETRY


SPECIFICATIONS

FRAME MATERIAL Kona 6061 Aluminum Butted
SIZES S, M, L
REAR SHOCK n/a
FORK Kona Project Two Aluminum Disc
CRANKARMS Suntour
CHAINRINGS 38t
B/B Suntour
PEDALS Kona JS2
CHAIN KMC Z8.3
CASSETTE Shimano Altus 11-32t 8spd
CHAINGUIDE n/a
F/D n/a
R/D Shimano TX
SHIFTERS Shimano Altus
BRAKE CALIPERS Tektro HDM275 Hydraulic
FRONT BRAKE ROTOR Tektro TR180 180mm
REAR BRAKE ROTOR Tektro TR180 180mm
BRAKE LEVERS Tektro HDM275 Hydraulic
HEADSET Feimin FP-H863
HANDLEBAR Kona Handplant
STEM Kona Commuter
SEATPOST Kona Commuter 27.2mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip Slip on
SADDLE Kona Commuter
FRONT HUB Shimano 100x9mm
REAR HUB SR Suntour HD 20MPH
SPOKES Stainless Black 14g/13g
RIMS WTB SX19
FRONT TIRE WTB Horizon Comp 650x47c
REAR TIRE WTB Horizon Comp 650x47c
DRIVEUNIT SR Suntour HD 20MPH
BATTERY Phylion 418Wh
DISPLAY SR Suntour OLED Display
CHARGER Phylion 2A
BATTERYLOCK SR Suntour
PAINT COLOR Gloss Metallic Yellow w/ Charcoal Decals
EXTRAS Kickstand
All specifications are subject to change without notice



GEOMETRY

SIZE S M L
1 ST LENGTH 420 470 520
2 TT LENGTH 553 597 636
3 REACH 395 423 439
4 STACK 591 606 643
5 STANDOVER 584 584 591
6 HT ANGLE 70.0 70.0 70.0
7 HT LENGTH 170 185 225
8 ST ANGLE 75.0 74.0 73.0
9 CS LENGTH 450 450 450
10 BB DROP 60 60 60
11 BB HEIGHT 282 282 282
12 WHEELBASE 1088 1121 1150
13 FRONT CENTER 644 677 707
14 FORK LENGTH 409 409 409
15 FORK OFFSET 50 50 50
Bike Geometry
