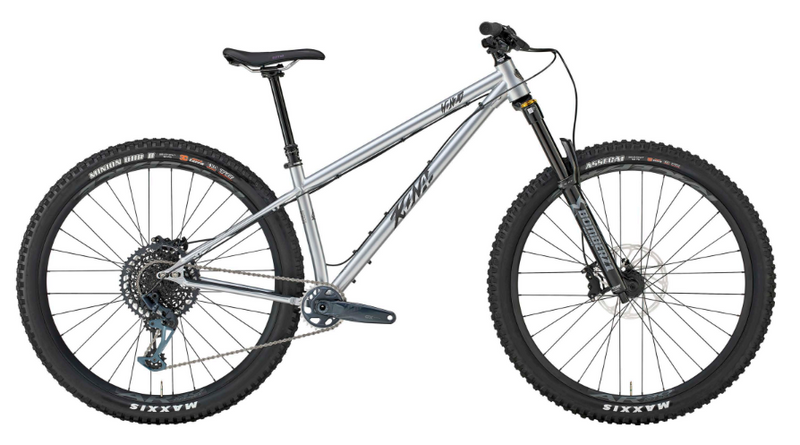

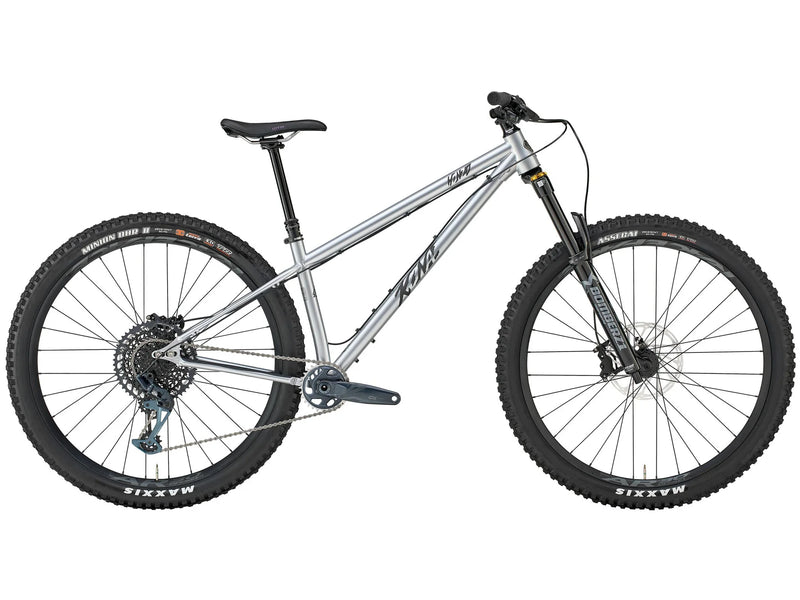

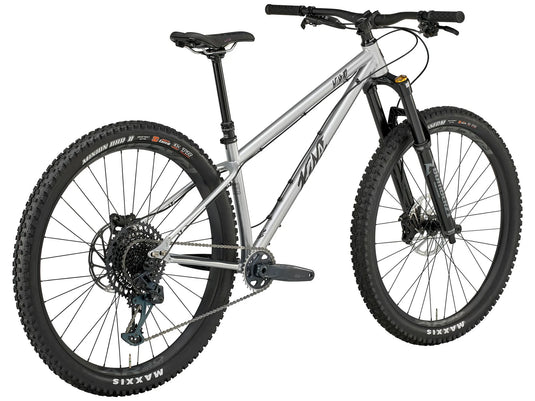

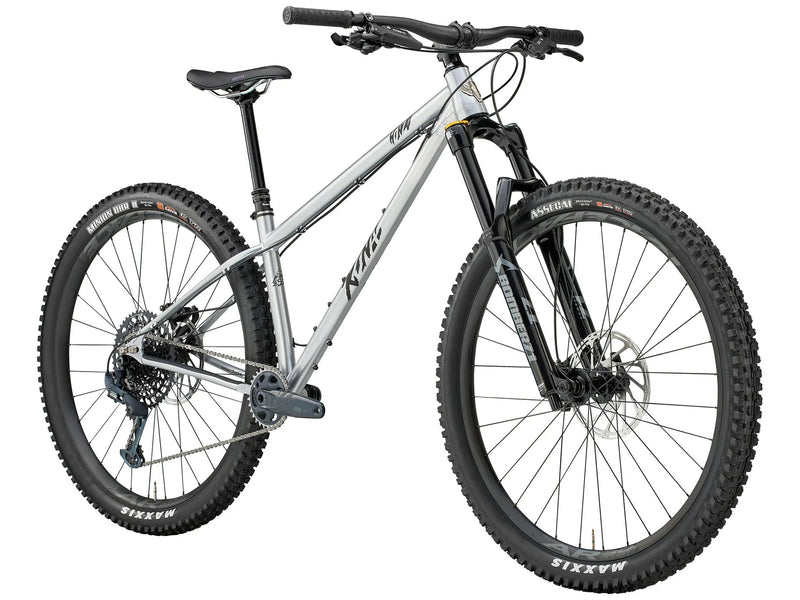

Honzo ESD - MTB Hardtail

Name: Honzo ESD - MTB Hardtail
Brand: Kona
SKU: KN25B-HON-ESD-SM-SI
Price: 2599.0 GBP
Availability: InStock

In Transit Stock

External Stock: 3x Units

Kona

The Radical Slacker – we initially built the Honzo ESD as a test case for the long and low geometry we were developing for the Process X. Most hardtails tend to be somewhat conservative in their geometry. The Honzo ESD is anything but that. Its cromoly steel frame features a head and seat angle that would be right at home on a modern long travel full suspension bike. Wrapped around a 150mm fork, 4-piston brakes front and rear, shod with meaty Maxxis rubber and featuring a headtube badge may or may not open up the gates to The Underworld, the Honzo ESD is an exercise in barely restrained aggression.

SPECIFICATIONS

Frame Material	Kona Cromoly Butted
Sizes	S, M, L, XL
Rear Shock	n/a
Fork	Marzocchi Bomber Z1 Grip Damper 150mm Tapered 110mm Spacing
Crankarms	SRAM GX Eagle
Chainrings	30t X-Sync Eagle
B/B	SRAM DUB 73mm
Pedals	n/a
Chain	SRAM NX Eagle
Cassette	SRAM GX 10-52t 12spd
Chainguide	MRP
F/D	n/a
R/D	SRAM GX Eagle
Shifters	SRAM GX Eagle
Brake Calipers	SRAM DB8
Front Brake Rotor	SRAM Centerline 200mm
Rear Brake Rotor	SRAM Centerline 200mm
Brake Levers	SRAM DB8
Headset	FSA Orbit 1.5 E ZS
Handlebar	Race Face Aeffect R 35
Stem	Race Face Aeffect R 35
Seatpost	TranzX Dropper +RAD Internal 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	WTB Volt
Front Hub	Race Face AR 30 110x15mm
Rear Hub	Race Face AR 30 148x12mm
Spokes	Stainless Black 14g
Rims	Race Face AR 30
Front Tire	Maxxis Assegai EXO TR 3C 29x2.5" WT
Rear Tire	Maxxis Minion DHR II EXO TR 3C 29x2.4" WT
Paint Color	Gloss Faux Chrome w/ Satin Lead Reflective Decals

All specifications are subject to change without notice.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	380	380	420	450
2	TT Length	578	605	633	670
3	Reach	440	465	490	525
4	Stack	625	634	643	652
5	Standover	712	710	709	706
6	HT Angle	63.0	63.0	63.0	63.0
7	HT Length	90	100	110	120
8	ST Angle	77.5	77.5	77.5	77.5
9	CS Length	417	417	417	417
10	BB Drop	62.5	62.5	62.5	62.5
11	BB Height	312.5	312.5	312.5	312.5
12	Wheelbase	1186	1216	1245	1285
13	Front Center	776	806	835	875
14	Fork Length	560	560	560	560
15	Fork Offset	42	42	42	42
