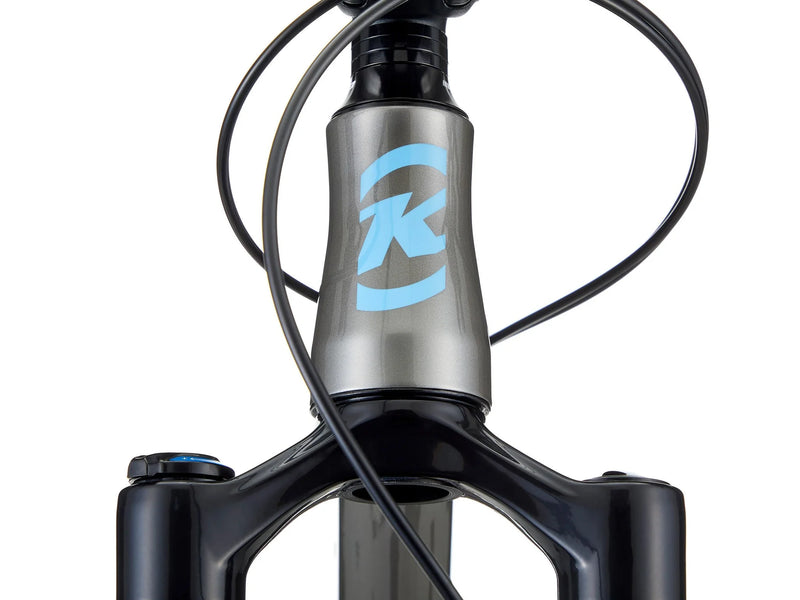

Load image into Gallery viewer, Honzo DL - MTB Hardtail

SKU: KN23B-HON-DL-SM-GR

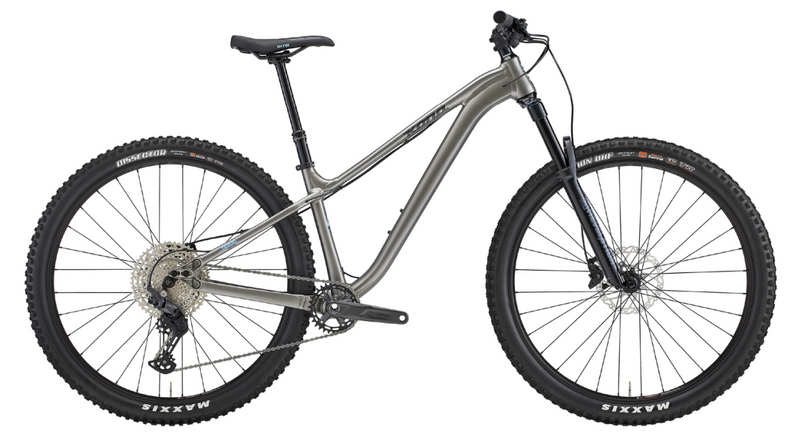

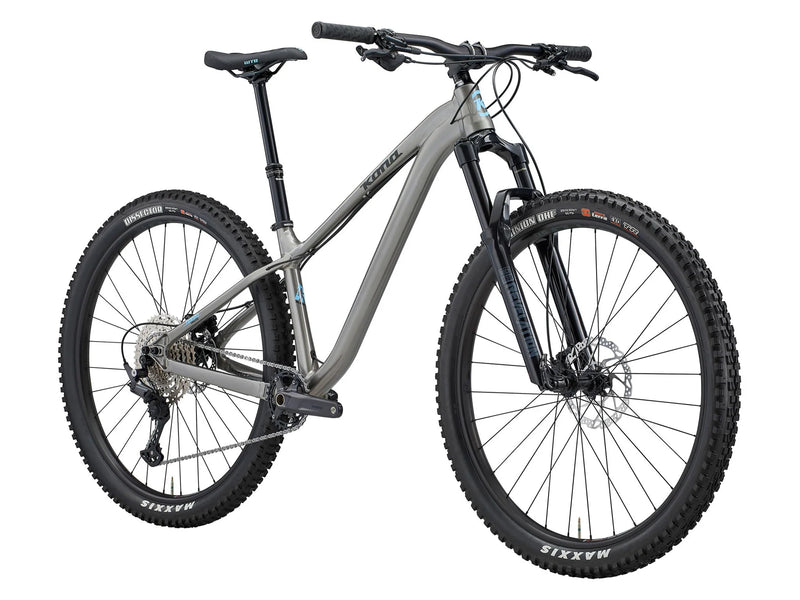

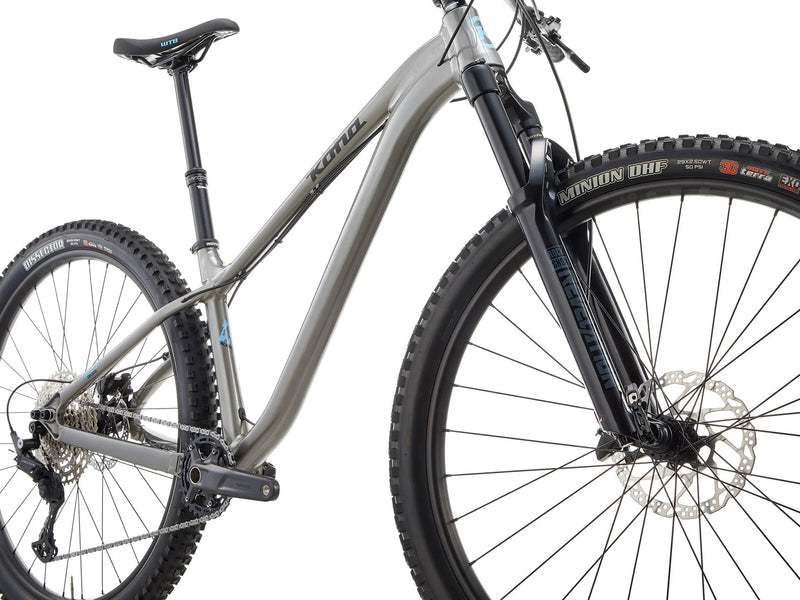

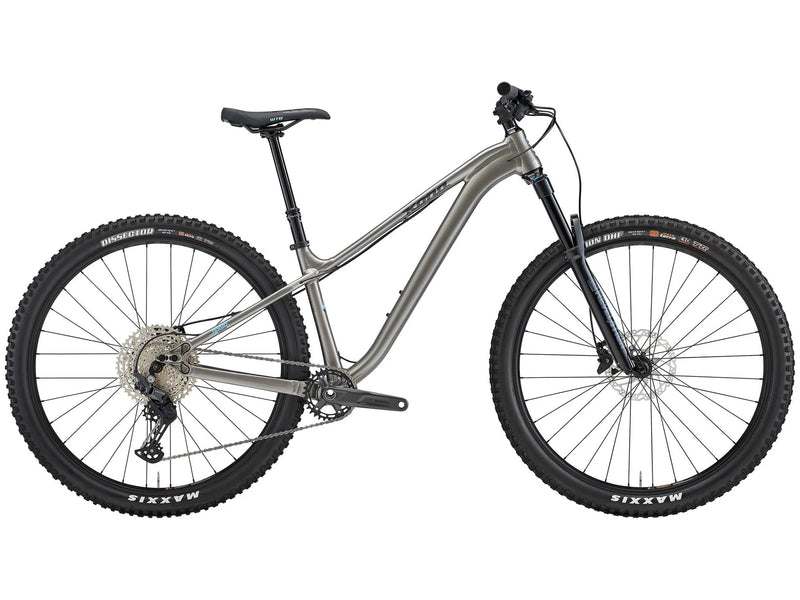

Honzo DL - MTB Hardtail

Name: Honzo DL - MTB Hardtail
Brand: Kona
SKU: KN23B-HON-DL-SM-GR
Price: 1099.0 GBP
Availability: InStock

In Transit Stock

Incoming Stock: 6x Units Due 2026-08-19

External Stock: 0x Units

Kona

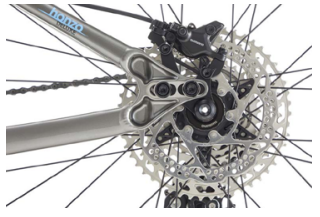

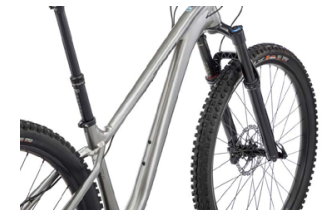

For the hardtail enthusiast, the Honzo DL is a quintessential bike to have in your quiver. Featuring an aluminum frame with geometry derived from the Process 134 it’s ready to rip up and down the trails. A short seat tube allows you to run a longer dropper post, and adjustable dropouts allow you to run the bike geared or as a single speed. Sitting squarely between the Honzo and the Honzo ESD – the Honzo DL is the all-round hardtail for any location.

SPECIFICATIONS

Frame Material	Kona 6061 Aluminum Butted
Sizes	S, M, L, XL
Rear Shock	n/a
Fork	RockShox Revelation RC DebonAir 140mm Tapered 110mm Spacing

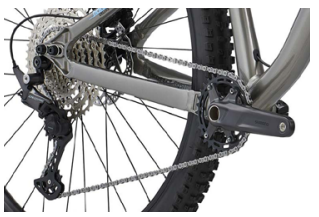

Crankarms	Shimano Deore 12 spd
Chainrings	32t
B/B	Shimano PF92
Pedals	n/a
Chain	Shimano Deore 12 spd
Cassette	Shimano Deore 11-50t 12spd
Chainguide	n/a
F/D	n/a
R/D	Shimano Deore 12 spd
Shifters	Shimano Deore 12 spd
Brake Calipers	Shimano MT410 Hydraulic
Front Brake Rotor	Shimano RT54 180mm (centerlock)
Rear Brake Rotor	Shimano RT54 160mm (centerlock)
Brake Levers	Shimano MT410 Hydraulic
Headset	FSA No.57B
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35

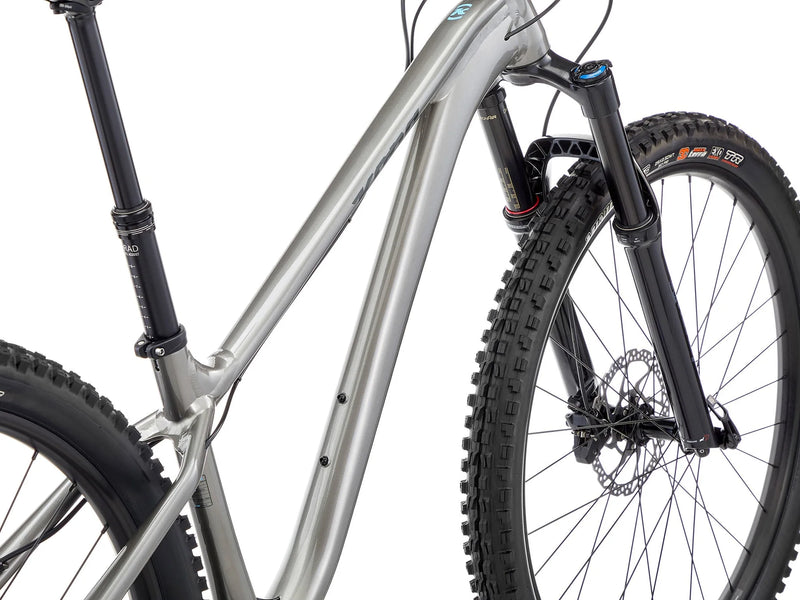

Seatpost	TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	WTB Volt
Front Hub	Shimano 110x15mm (centerlock)
Rear Hub	Shimano 148x12mm (centerlock)
Spokes	Stainless Black 14g
Rims	WTB ST i30 TCS
Front Tire	Maxxis Minion DHF EXO TR 3C 29x2.5" WT
Rear Tire	Maxxis Dissector EXO TR 3C 29x2.4" WT
Paint Color	Gloss Metallic Grey w/ Charcoal & Cyan Decals
Extras	n/a

All specifications are subject to change without notice.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	379	379	419	449
2	TT Length	582	609	636	668
3	Reach	430	455	480	510
4	Stack	631	640	649	658
5	Standover	717	695	690	716
6	HT Angle	65.5	65.5	65.5	65.5
7	HT Length	90	100	110	120
8	ST Angle	76.5	76.5	76.5	76.5
9	CS Length	415	415	415	415
10	BB Drop	63	63	63	63
11	BB Height	312	312	312	312
12	Wheelbase	1156	1185	1214	1248
13	Front Center	738	767	796	830
14	Fork Length	551	551	551	551
15	Fork Offset	42	42	42	42
