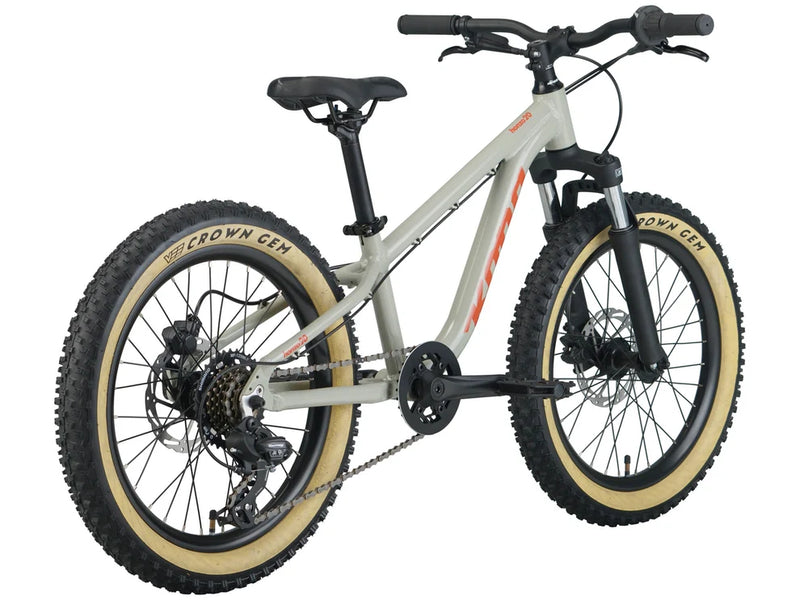

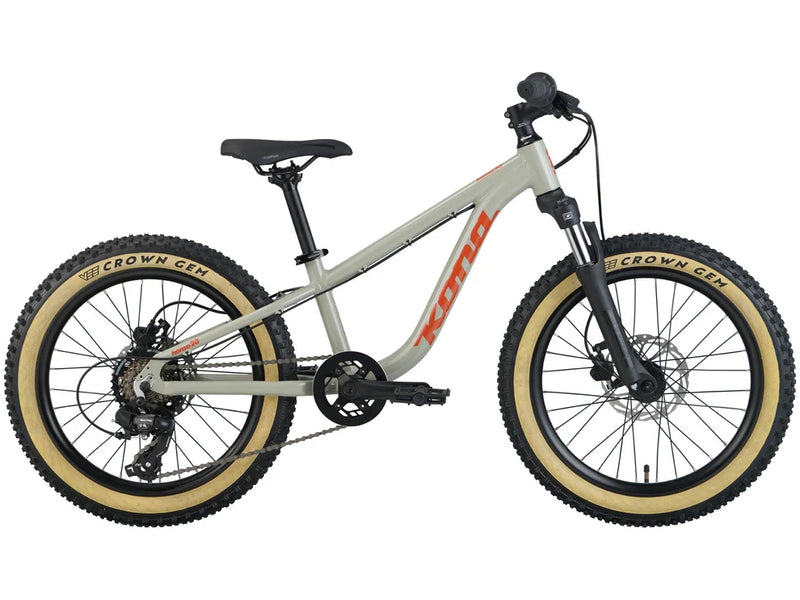

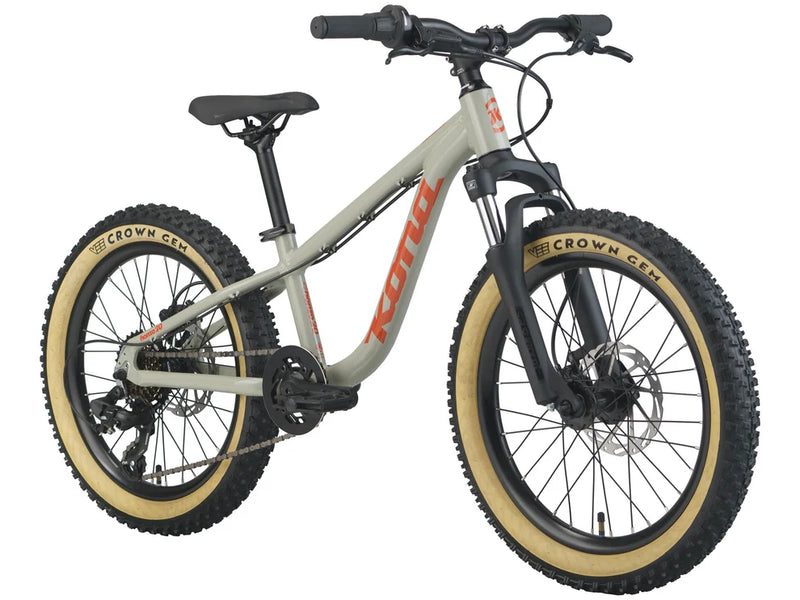

Kona Honzo 20

The Honzo 20 is a 20” kids’ mountain bike for young riders ready to move beyond the sidewalk and onto real trails. Inspired by the full-size Honzo, this capable youth trail bike is equally happy ripping around the neighborhood, exploring the local pump track, or tackling a first singletrack adventure.

Wide 2.6” tires add traction and help roll over roots, rocks, and other kid-sized obstacles, while a 60mm suspension fork takes the edge off rough ground. QR hubs make repairs easier for the grown-up pit crew. Call it their first real mountain bike but don’t expect them to stay behind you for long.

SPECIFICATIONS

FRAME	Kona 6061 Aluminum Butted
SIZES	11"
REAR SHOCK	n/a
FORK	Suntour XCT DS Boost Plus Coil 60mm
CRANKSET	Prowheel CHARM 30t 4-bolt 76mm / Length 127mm
BOTTOM BRACKET	Feimin BSA 68x113mm
PEDALS	Feimin Platform
CHAIN	KMC HV500
CASSETTE	Shimano Tourney 14-34t 7spd
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	Shimano Tourney
SHIFTERS	Shimano Revo Shift
BRAKE CALIPERS	Tektro HDM276 Hydraulic
FRONT BRAKE ROTOR	Tektro TR160 160mm
REAR BRAKE ROTOR	Tektro TR160 160mm
BRAKE LEVERS	Tektro HDM276 Hydraulic
HEADSET	FSA No.10 ZS44/ZS44
HANDLEBAR	Kona OB
STEM	Kona OB
SEATPOST	Kona Thumb 27.2mm
SEAT CLAMP	Kona QR
GRIPS	Kona DJ
SADDLE	Kona DJ
FRONT HUB	Joytech 9x110mm
REAR HUB	Joytech 10x135mm
SPOKES	Stainless 2.0mm Black
RIMS	Double Wall Aluminum
FRONT TIRE	Vee Tire Crown Gem 20x2.6"
REAR TIRE	Vee Tire Crown Gem 20x2.6"
PAINT COLOR	Gloss Gumroad w/ Burnt Orange Decals

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	Size	S
1	ST Length	250
2	TT Length	457
3	Reach	320
4	Stack	435
5	Standover	546
6	HT Angle	69.0
7	HT Length	90
8	ST Angle	72.5
9	CS Length	365
10	BB Drop	5
11	BB Height	269
12	Wheelbase	893
13	Front Center	528
14	Fork Length	382
15	Fork Offset	40
