SKU: KN25B-ECO-SM

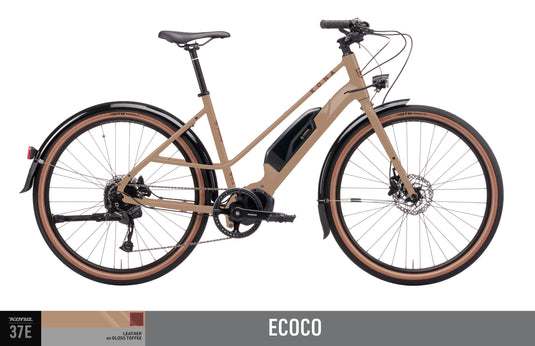

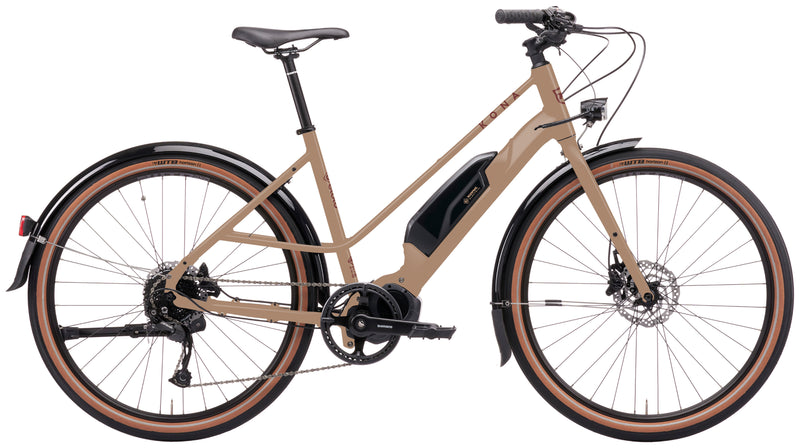

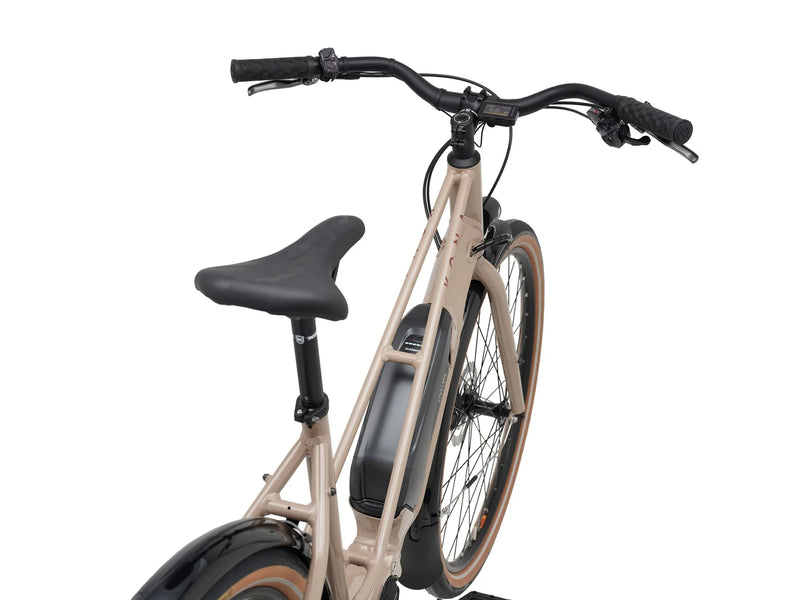

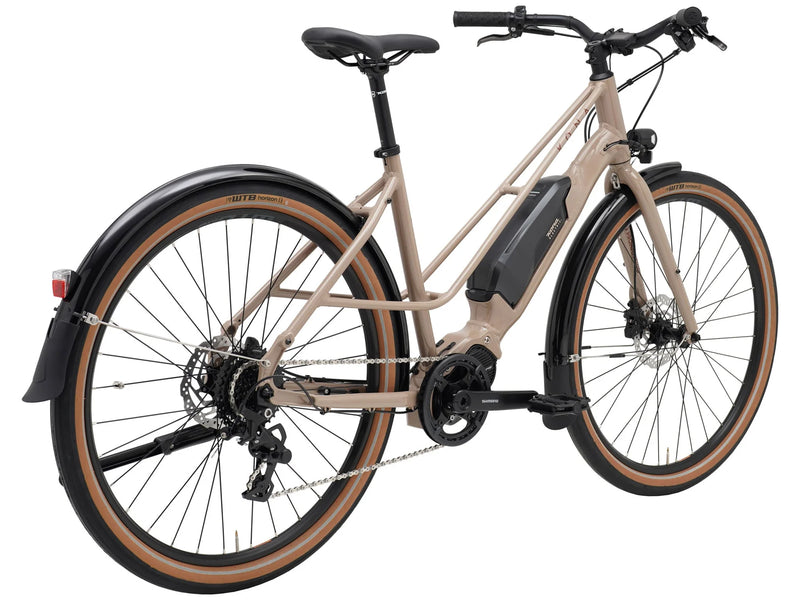

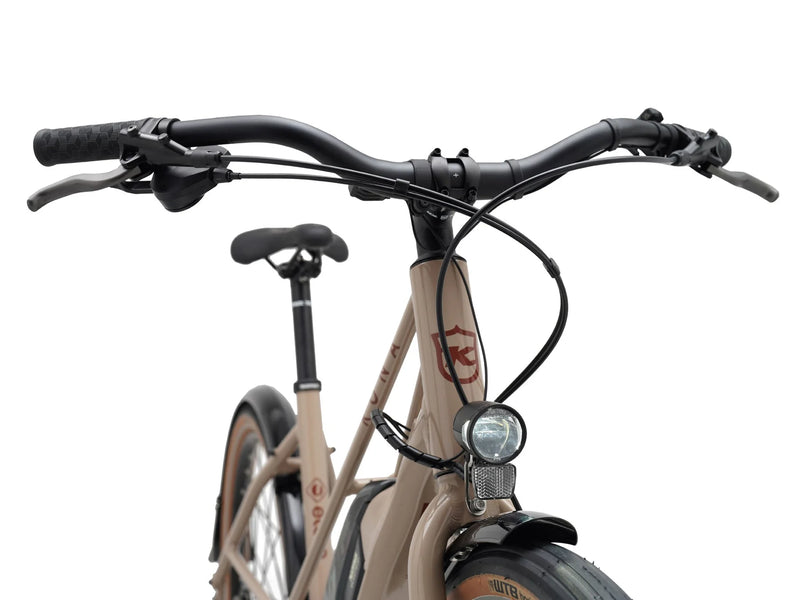

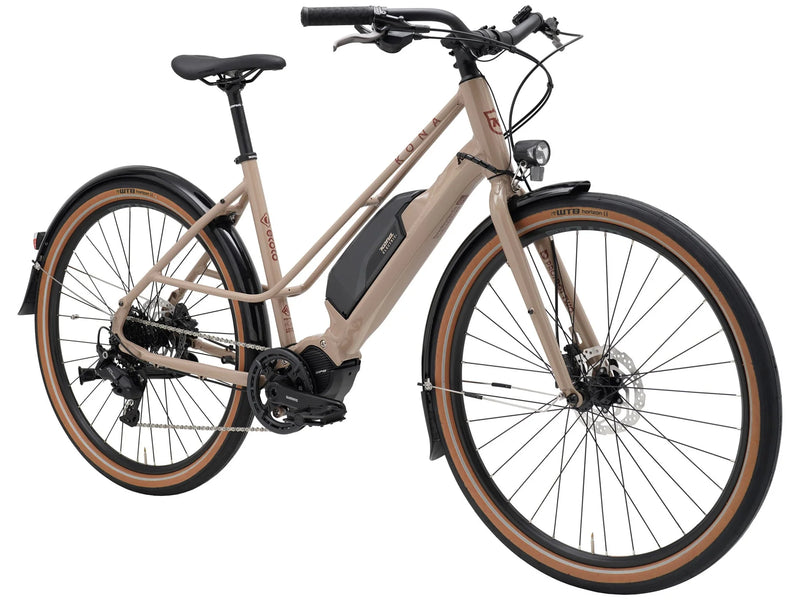

E-Coco - Electric - Brown

Name: E-Coco - Electric - Brown
Brand: Kona
SKU: KN25B-ECO-SM
Price: 1999.0 GBP
Availability: InStock

In Transit Stock

External Stock: 0x Units

Kona

The Ecoco has been spotted alongside trendsetters all over the world. It makes running errands fun. It’s the perfect boardwalk beach cruiser and it doesn’t have to worry about fitting into a bathing suit. Its eye-catching paint on its low-slung step-through frame is a showstopper, and its Shimano E6100 motor ensures that you’ll make it to the top of that big hill in time to watch every single sunset. Dependable shifting and disc brakes will keep all the moving parts running smoothly. It comes with fenders, front and rear lights, and a kickstand. The only thing needed, is you!

SPECIFICATIONS

FRAME	Kona 6061 Aluminum Butted
SIZES	S, M, L
REAR SHOCK	n/a
FORK	Kona 6061 Aluminum
CRANKARMS	Shimano EN500
CHAINRINGS	Shimano 38t
BOTTOM BRACKET	n/a
PEDALS	Feimin Platform
CHAIN	KMC eGlide
CASSETTE	Shimano CUES LG300 11-36t 9spd
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	Shimano RDU4010
SHIFTER	Shimano CUES 4000
BRAKE CALIPERS	Shimano MT401
FRONT BRAKE ROTOR	Shimano 160mm Centerlock
REAR BRAKE ROTOR	Shimano 160mm Centerlock
BRAKE LEVERS	Shimano MT410
HEADSET	Feimin ZS44/ZS44
HANDLEBAR	Kona Back 38º / Rise 38mm / Width 640mm
STEM	Kona 31.8mm / Rise 6º / Length 60mm
SEATPOST	Kona Commuter 27.2mm / S-M 350mm / L 375mm
SEAT CLAMP	Kona Clamp 31.8mm
GRIPS	Kona Key Grip
SADDLE	Kona Commuter
FRONT HUB	Shimano 9x100mm
REAR HUB	Shimano 10x135mm
SPOKES	Stainless 2.0mm Black
RIMS	WTB SX19
FRONT TIRE	WTB Horizon 650x47mm
REAR TIRE	WTB Horizon 650x47mm
DRIVE UNIT	Shimano DU-EP500 20mph
BATTERY	Shimano 504Wh
DISPLAY	Shimano SC-EN600
CHARGER	Shimano 1.8A (100-240V)
BATTERY LOCK	Abus
PAINT COLOR	Gloss Toffee w/ Leather Decals
EXTRAS	Fenders / Front & Rear Light / Kickstand

All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.

All specifications are subject to change without notice.

GEOMETRY

	Size	S	M	L
1	ST Length	420	470	520
2	TT Length	551	596	635
3	Reach	397	422	438
4	Stack	573	606	644
5	Standover	584	584	591
6	HT Angle	70.0	70.0	70.0
7	HT Length	140	175	215
8	ST Angle	75.0	74.0	73.0
9	CS Length	450	450	450
10	BB Drop	70	70	70
11	BB Height	272	272	272
12	Wheelbase	1078	1115	1144
13	Front Center	637	674	703
14	Fork Length	409	409	409
15	Fork Offset	50	50	50
