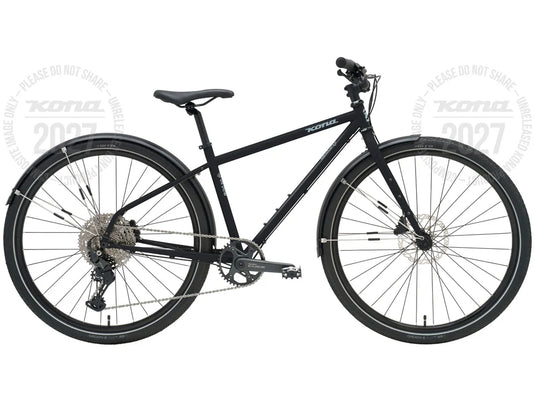

Kona Dr Dew

The Dr Dew is a refined steel commuter bike for riders who prefer their daily transportation with a little more personality. Its Cromoly frame and mountain-bike-informed design deliver a smooth, confident ride, while thru-axles front and rear keep things planted and responsive when the pavement gets ugly or a questionable shortcut presents itself.

External headset cups add a classic touch, and the whole package carries more than a little of the easygoing eccentricity of the legend himself. Doctor’s orders: ride daily. Side effects may include unexplained detours and a growing intolerance for the shortest route home.

SPECIFICATIONS

FRAME	Kona Butted Cromoly
SIZES	S, M, L, XL
REAR SHOCK	n/a
FORK	Kona Cromoly
CRANKSET	Shimano CUES 6000 40t / S-M 170mm / L-XL 175mm
BOTTOM BRACKET	Shimano BSA 73mm
PEDALS	Feimin Platform
CHAIN	KMC XGlide
CASSETTE	Shimano CUES 4000 11-50t 11spd
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	Shimano CUES 6000
SHIFTER	Shimano CUES 6000
BRAKE CALIPERS	Shimano ALTUS
FRONT BRAKE ROTOR	Shimano 180mm Centerlock
REAR BRAKE ROTOR	Shimano 180mm Centerlock
BRAKE LEVERS	Shimano ALTUS
HEADSET	FSA Orbit No.1 EC34/EC34
HANDLEBAR	Kona 31.8mm / Back 10º / Up 6º / Rise 70mm / Width 700mm
STEM	Kona 31.8mm / Rise 3º / Length 45mm
SEATPOST	Kona w/Offset 27.2mm / 350mm
SEAT CLAMP	Kona Clamp 30.0mm
GRIPS	Kona Key Grip
SADDLE	Kona Commuter
FRONT HUB	Shimano 12x100mm
REAR HUB	Shimano 12x142mm HG
SPOKES	Stainless 2.0mm Black
RIMS	WTB ST i25 TCS CVX
FRONT TIRE	WTB GROOV-E 29x2.0"
REAR TIRE	WTB GROOV-E 29x2.0"
PAINT COLOR	Gloss Fancy Black w/ Frost Decals
EXTRAS	Bell / Fenders

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	420	470	520	570
2	TT Length	565	606	648	689
3	Reach	400	430	460	490
4	Stack	539	577	614	651
5	Standover	711	754	798	842
6	HT Angle	69	69	69	69
7	HT Length	80	120	160	200
8	ST Angle	73	73	73	73
9	CS Length	470	470	470	470
10	BB Drop	70	70	70	70
11	BB Height	295	295	295	295
12	Wheelbase	1098	1143	1187	1231
13	Front Center	638	682	726	770
14	Fork Length	430	430	430	430
15	Fork Offset	50	50	50	50
