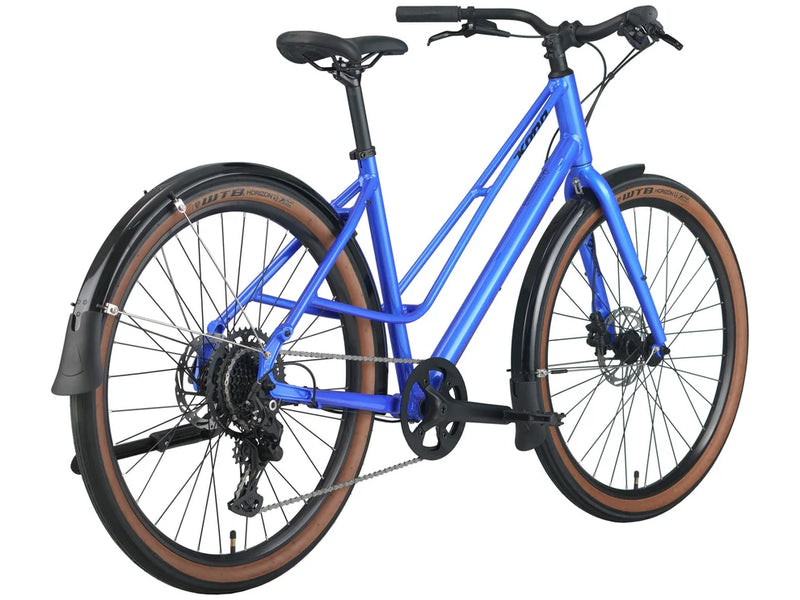

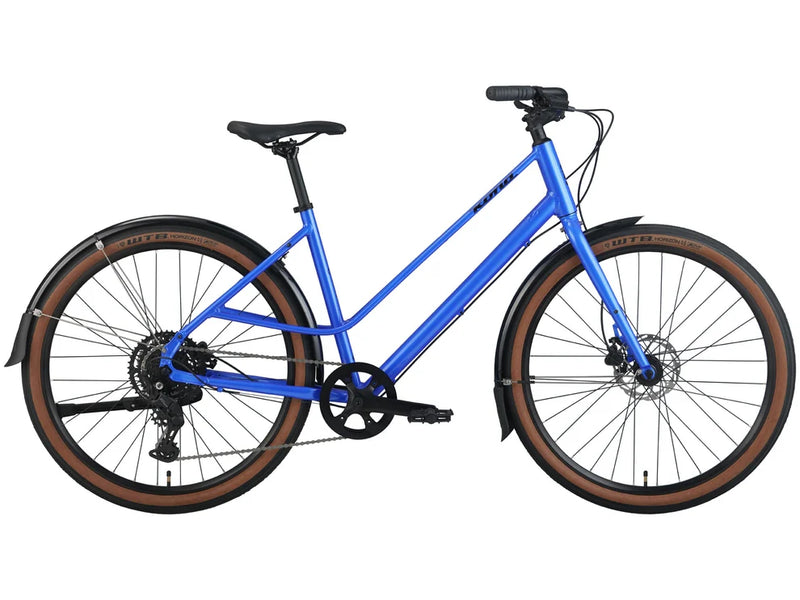

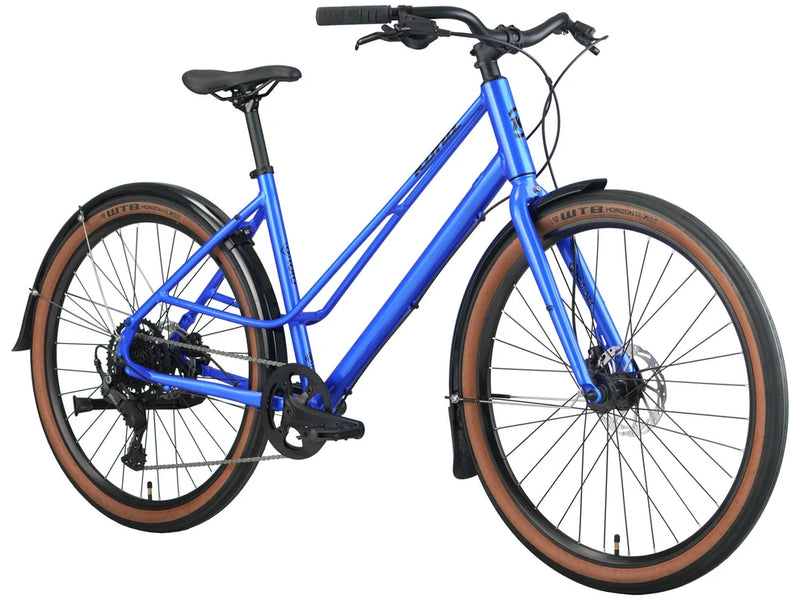

Kona CoCo

The Coco is a stylish step-through commuter bike built for city riding, neighborhood cruising, and everyday errands that deserve a little more flair. Its low-slung, European-inspired frame makes getting on and off easy, while internal shift cable routing keeps the lines clean and puncture-resistant tires help keep the daily commute rolling smoothly.

It’s practical, comfortable, and fully capable of turning a quick trip to the store into another lap around the neighborhood. The Coco makes everyday transportation look suspiciously like a joyride.

SPECIFICATIONS

FRAME	Kona 6061 Aluminum Butted
SIZES	S, M, L
REAR SHOCK	n/a
FORK	Kona Project Two Aluminum Disc
CRANKSET	Prowheel 39t / S-M 165mm / L 170mm
BOTTOM BRACKET	Feimin BSA 68x124.5mm
PEDALS	Feimin Platform
CHAIN	KMC Xglide
CASSETTE	Shimano LG300 11-46t 9spd
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	Shimano CUES 4000 SGS
SHIFTERS	Shimano CUES 4000
BRAKE CALIPERS	Tektro HD-M280 Hydraulic
FRONT BRAKE ROTOR	Tektro TR160 160mm
REAR BRAKE ROTOR	Tektro TR160 160mm
BRAKE LEVERS	Tektro HD-M280 Hydraulic
HEADSET	Feimin ZS44/ZS44
HANDLEBAR	Kona Handplant / Back 38° / Rise 38mm / Width 640mm
STEM	Kona Commuter
SEATPOST	Kona Thumb w/Offset 27.2mm
SEAT CLAMP	Kona Clamp
GRIPS	Velo Ergo
SADDLE	Kona Commuter
FRONT HUB	Joytech 9x100mm QR
REAR HUB	Joytech 10x135 QR
SPOKES	Stainless 2.0mm Black
RIMS	Double Wall Aluminum
FRONT TIRE	WTB Horizon Comp w/ Puncture Protection 650x47c
REAR TIRE	WTB Horizon Comp w/ Puncture Protection 650x47c
PAINT COLOR	Gloss Metallic Electric Blue w/ Black Decals
EXTRAS	Fenders w/ Mudflaps / Kickstand / Bell

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

GEOMETRY

	Size	S	M	L
1	ST Length	420	470	520
2	TT Length	550	596	636
3	Reach	395	423	439
4	Stack	578	606	644
5	Standover	543	546	553
6	HT Angle	70	70	70
7	HT Length	145	175	215
8	ST Angle	75	74	73
9	CS Length	450	450	450
10	BB Drop	70	70	70
11	BB Height	272	272	272
12	Wheelbase	1078	1115	1146
13	Front Center	637	675	705
14	Fork Length	410	410	410
15	Fork Offset	50	50	50
